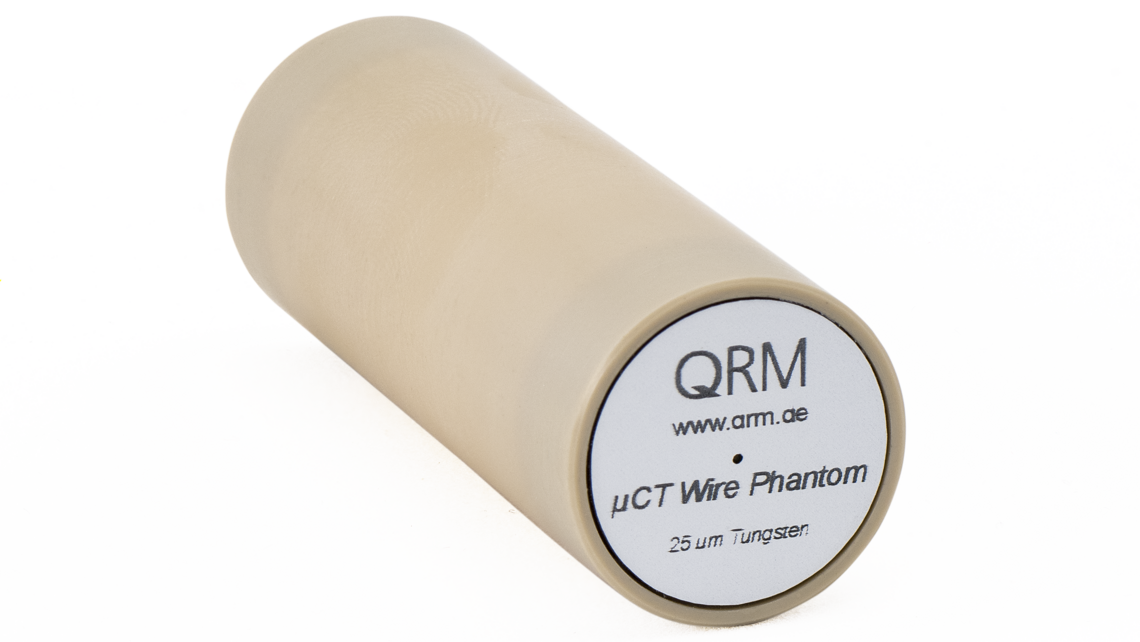

Micro-CT Wire Phantom

The Micro-CT Wire Phantom is a perfect tool to assess in-plane spatial resolution of any Micro-CT system. Different diameters of wire and materials are available.

Order-number: QRM-MicroCT-Wire

download product data sheet: QRM-MicroCT-Wire

QRM phantom QRM phantom

click image to enlarge

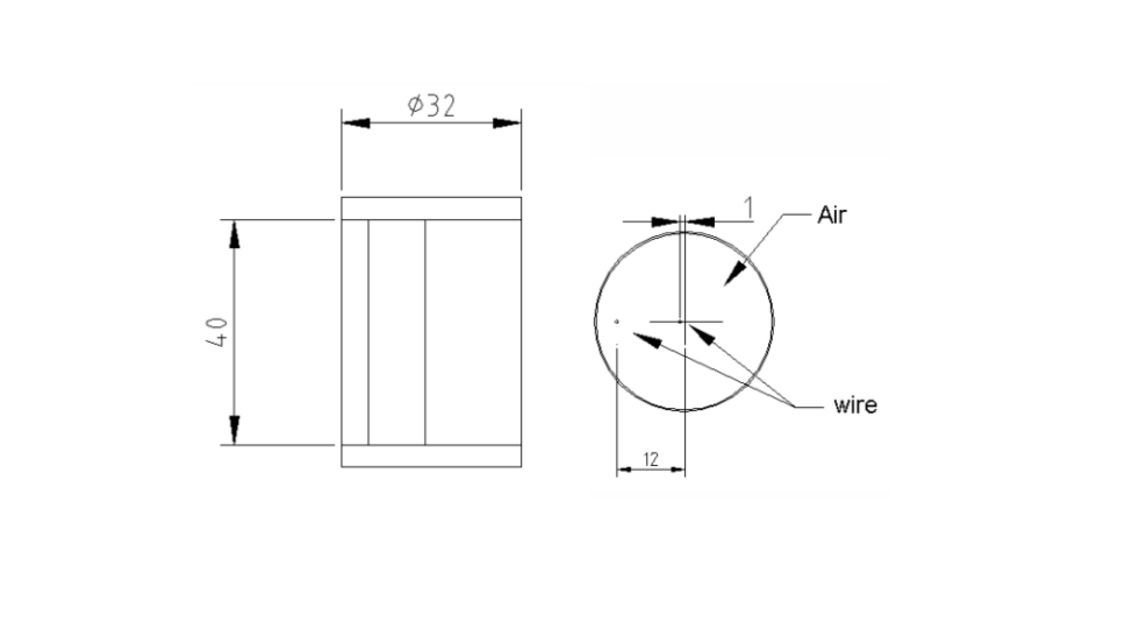

The QRM MicroCT Wire Phantom is based on a cylinder containing two wires in air or solid material aligned parallel to the phantom axis of rotation. One of the wires is slightly off center, the second one away from the center in order to allow estimating image quality in the periphery.

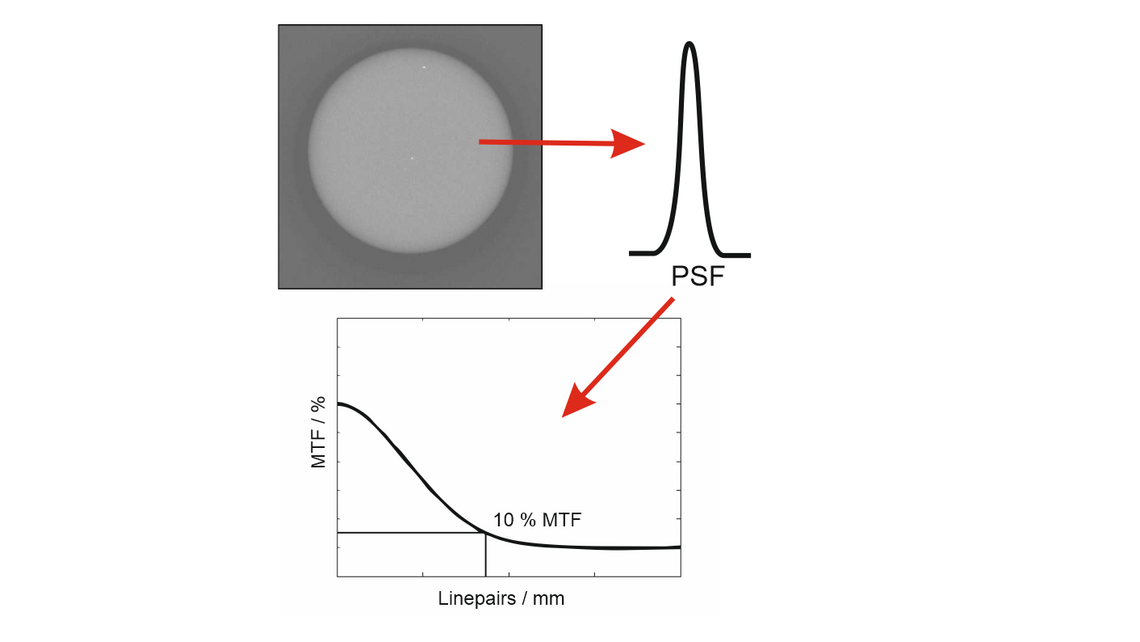

Point Spread Function (PSF) and Modulation Transfer Function (MTF) can so easily be investigated.
Different wire diameters are available as well as different materials and positions of the wires inside the phantom.
Please specify the material the wires should placed in (air or solid plastics). In both cases the contrast will be high enough for evaluation.

Standard phantoms are scaled down from the diameter of an average human trunk (32 cm) to that of a fat mouse or lean rat (32 mm). Other dimensions as well as inserts with substances other than specified here can be produced upon request.

Specifications

Base material: sturdy resin walls (in air) or whole solid resin
Wall thickness: 0.2- 0.5 mm
Material of wire: typically tungsten, other materials upon request
Available diameters of wires: 3 Ám, 10 Ám, 25 Ám


Dimensions for mouse-size phantom:
Diameter: 32 mm
Other diameters: 20 mm and upon request
Inner length: 40 mm
Total length: 58 mm
Weight: 7.5 g (air)
35 g (solid)
