Micro-PET Scatter Phantom

For evaluating scatter fraction, count losses & random coincidence measurements of micro-PET systems acc. to the NEMA NU 4-2008 standard

  • Performance evaluation of positron emission tomography (PET) systems for small-animal imaging
  • Design in accordance with the NEMA NU 4-2008 standard
  • Mouse, Rat and Monkey size



The NEMA NU 4-2008 standard proposes a standardized methodology for evaluating the performance of positron emission tomography (PET) designed for small-animal imaging.

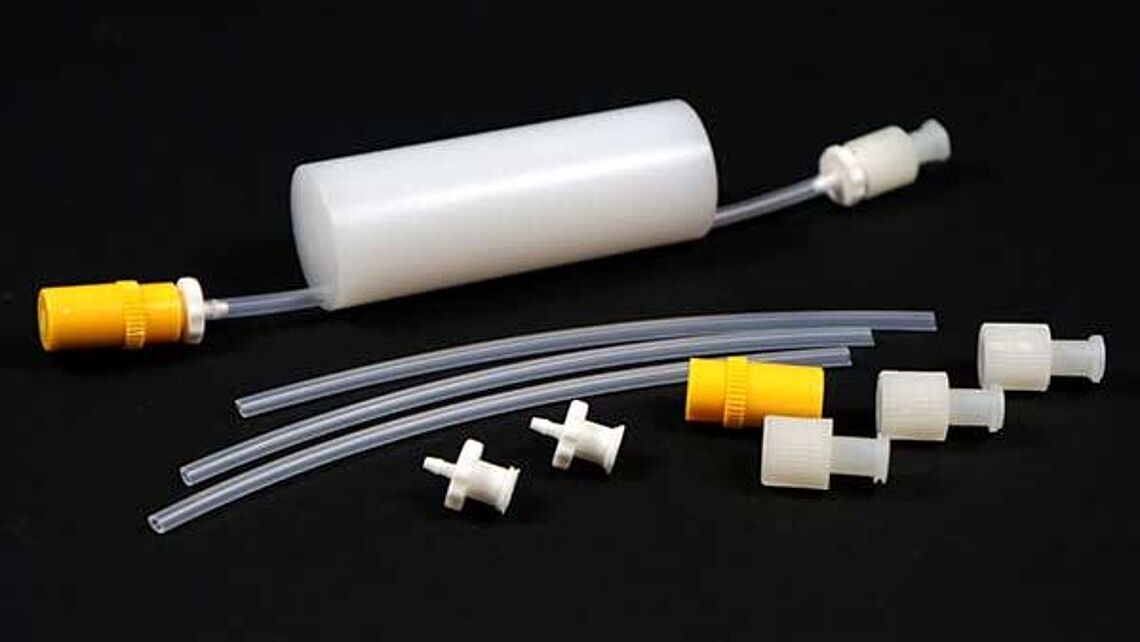

The phantoms are designed according to the NEMA NU4-2008 specifications for the evaluation of scatter fraction, count losses and random coincidence measurements in micro-PET systems. Three different types of phantoms are available (mouse, rat or monkey size). The phantoms are made from high-density polyethylene (HD PE).

Micro-PET Scatter Phantom Mouse, QRM-70116

Micro-PET Scatter Phantom Rat, QRM-70120

Micro-PET Scatter Phantom Monkey, QRM-70122

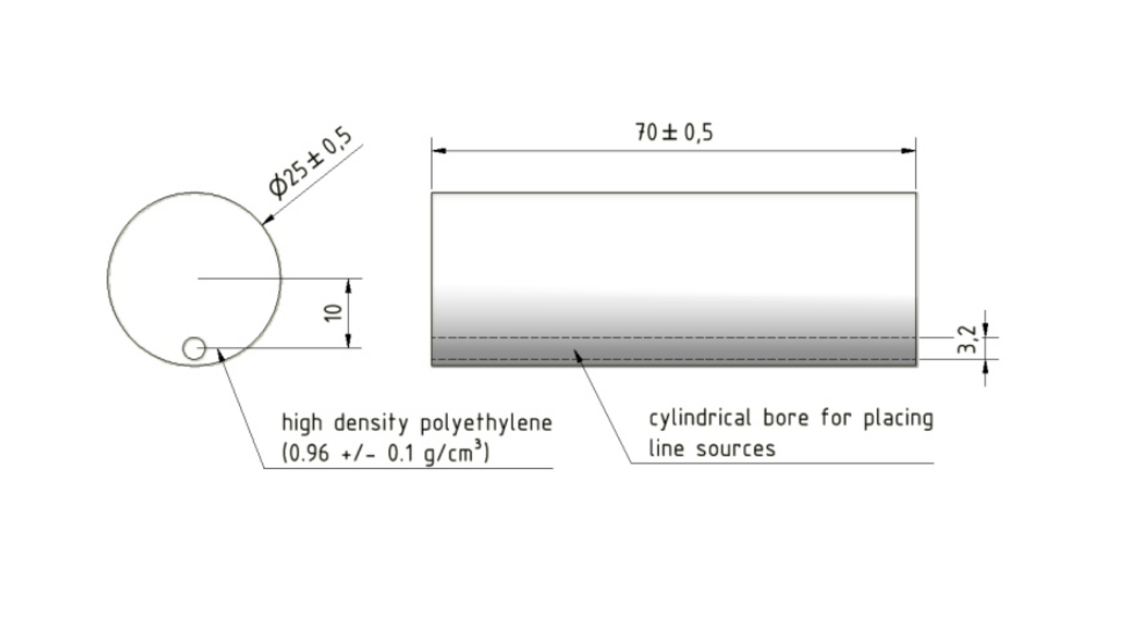

Phantom diameter 25 mm
Phantom height 70 mm
Phantom material high-density polyethylene (HD PE)
Borehole diameter 3.2 mm
Borehole position 10 mm off-center (parallel to the central axis)
Phantom diameter 50 mm
Phantom heigh 150 mm
Phantom material high-density polyethylene (HD PE)
Borehole diameter 3.2 mm
Borehole position 17.5 mm off-center (parallel to the central axis)
Phantom diameter 100 mm
Phantom height 400 mm
Phantom material high-density polyethylene (HD PE)
Borehole diameter 3.2 mm
Borehole position 30 mm off-center (parallel to the central axis)
