Lung Nodule Phantom

For the examination of low-contrast details within the lung region

OVERVIEW

The lung insert contains nodules of different sizes, shapes and different densities.

The phantom is designed to assess the detectability of all kinds of lung nodules within the lung region.

It houses multiple spherical nodules of different densities and dimensions arranged randomly within both lung lobes. The nodules are designed to cover various imaging scenarios with respect to nodule type and grey value (e.g. ground glass opacity). The enclosed lung material consists of homogeneous and heterogeneous lung granulate, which can be optionally filled into the lung lobes by the enduser.

In order to mimic a (semi-)anthropomorphic surrounding it contains a bone-like spine (corticalis and spongiosa). The body is made of soft tissue-equivalent material.

The QRM-20114 is a compact functional phantom and can be easily positioned on the patient couch.

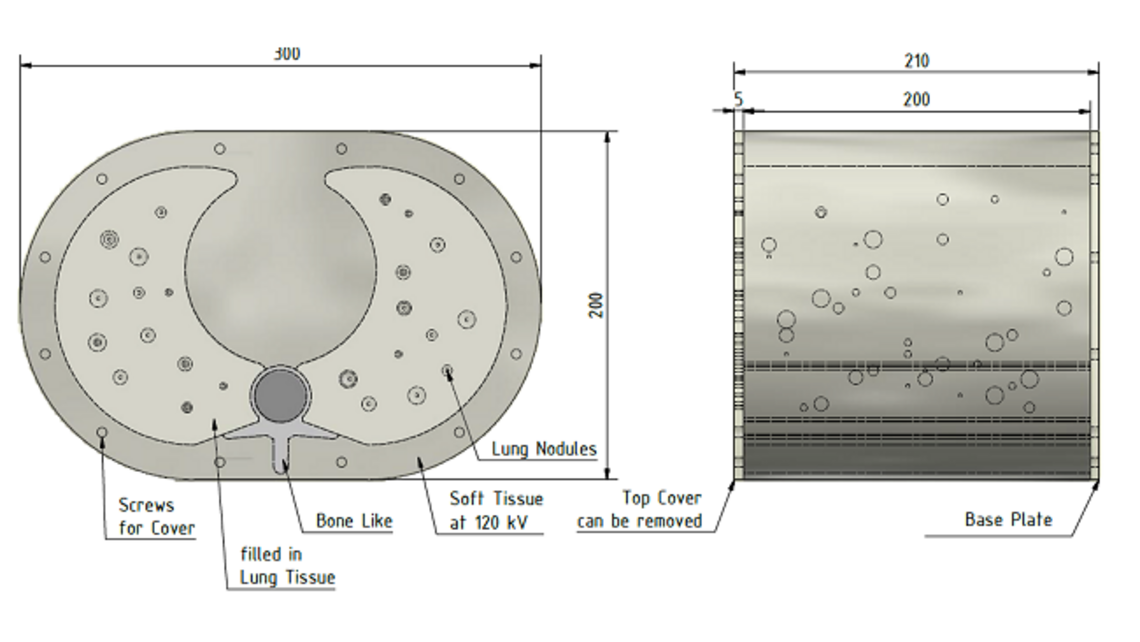

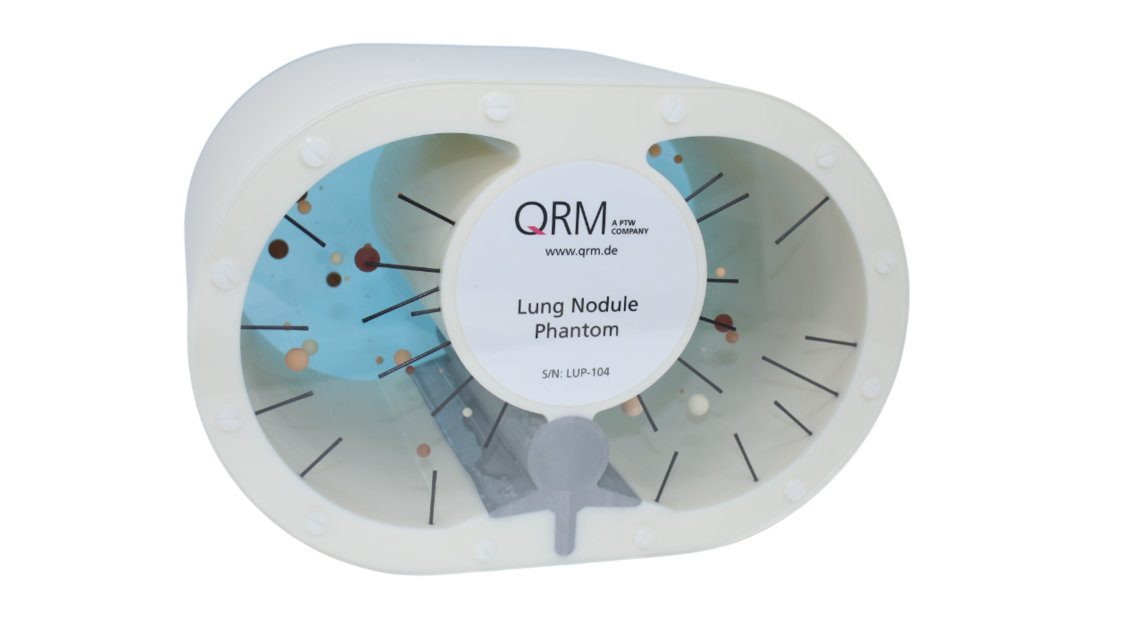

QRM-20114: Lung Nodule Phantom





Specifications

Phantom weight: 3.0 kg
Dimension: 200 mm x 300 mm
Height: 200 mm (210 mm including both cover plates)
Base material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Spine: corticalis / spongiosa (bone-like, app. 400 HU / 200 HU at 120 KV)
Nodul size
Nodule / Diameter 2 mm 4 mm 6 mm 8 mm 10 mm
20 HU 1 2 1 1 1
50 HU 2 1 1 1 1
80 HU 1 1 2 1 2
-650 HU 1 2 1 1 1 1
-750 HU 1 1 1 2 1
-850 HU 2 1 1 1 1

Nodules with core and shell
Nodule No Core Shell D Shell D Shell
1 50 HU -750 HU 2 4
2 50 HU -750 HU 2 6
3 50 HU -750 HU 4 8
