Micro-CT Low-Contrast Phantoms

For the evaluation of contrast detectability of Micro-CT systems

OVERVIEW

  • Evaluates low-contrast detectability of Micro-CT system
  • Two different phantoms available:|V1 contrast -4% and -8% inserts 1 and 2.5 mm |V2 Contrast -3%, -6%, -9%, inserts 1, 2 and 3 mm
  • Four inserts of two different contrast levels and dimensions
  • Customizable



The cylindrical Micro-CT Low-Contrast Phantoms comprise small details of a specified contrast used to estimate the low-contrast resolution of Micro-CT scanners.
The difference in Hounsfield Units can be as low as -40 HU and -80 HU. Actual values vary slightly depending on scanner geometry, calibration and tube voltage.

Standard phantoms are scaled down from the diameter of an average human trunk (32 cm) to that of a fat mouse (32 mm).

Different dimensions and insert substances can be produced upon request.

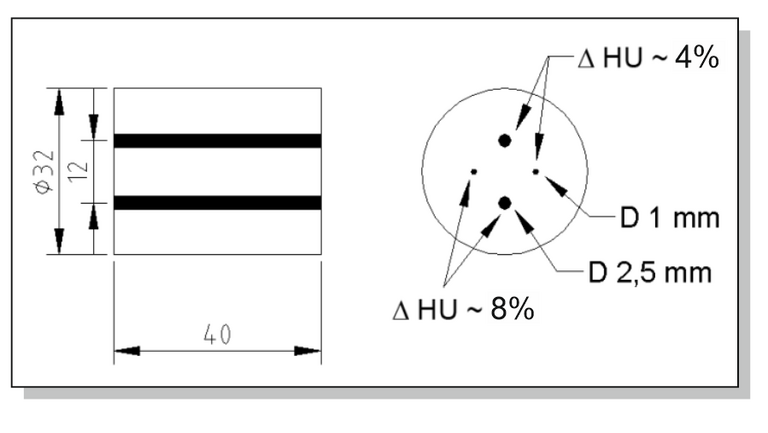

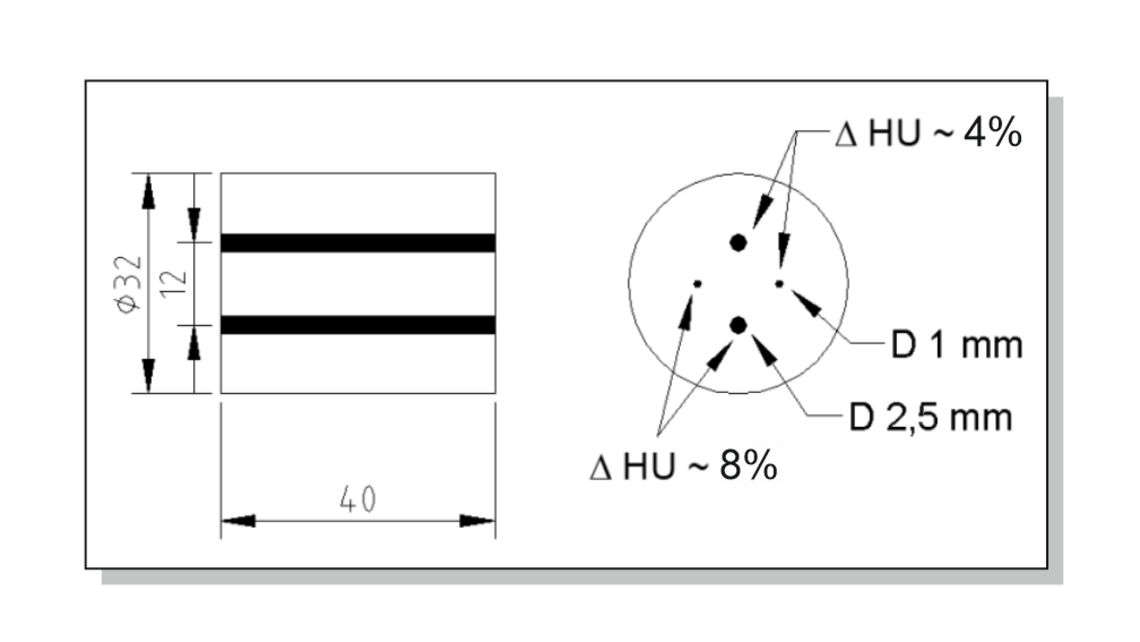

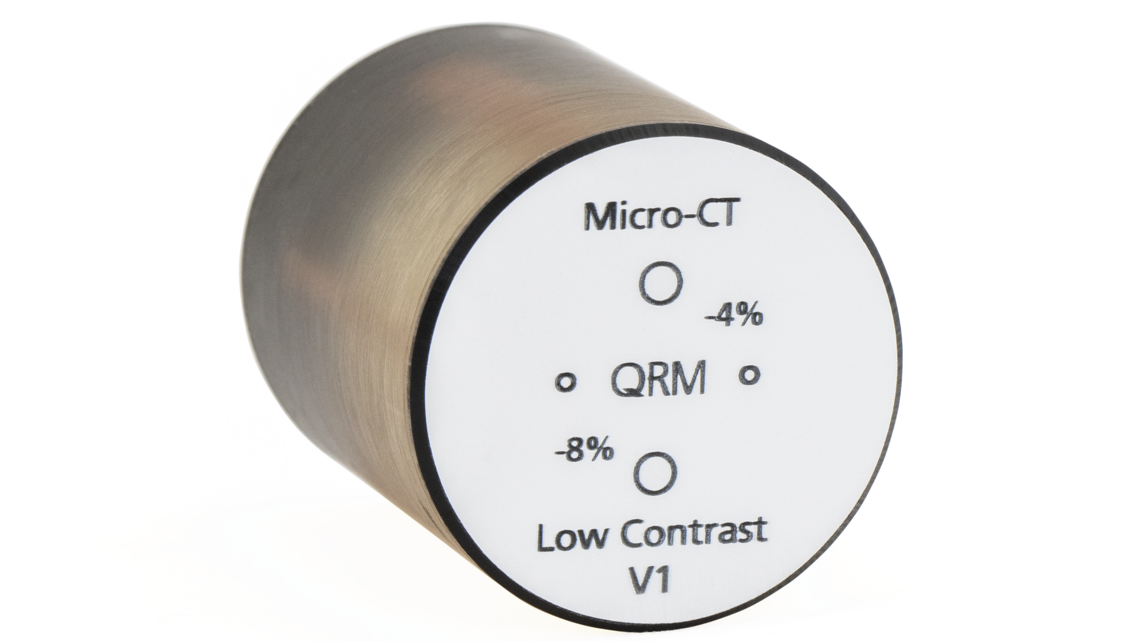

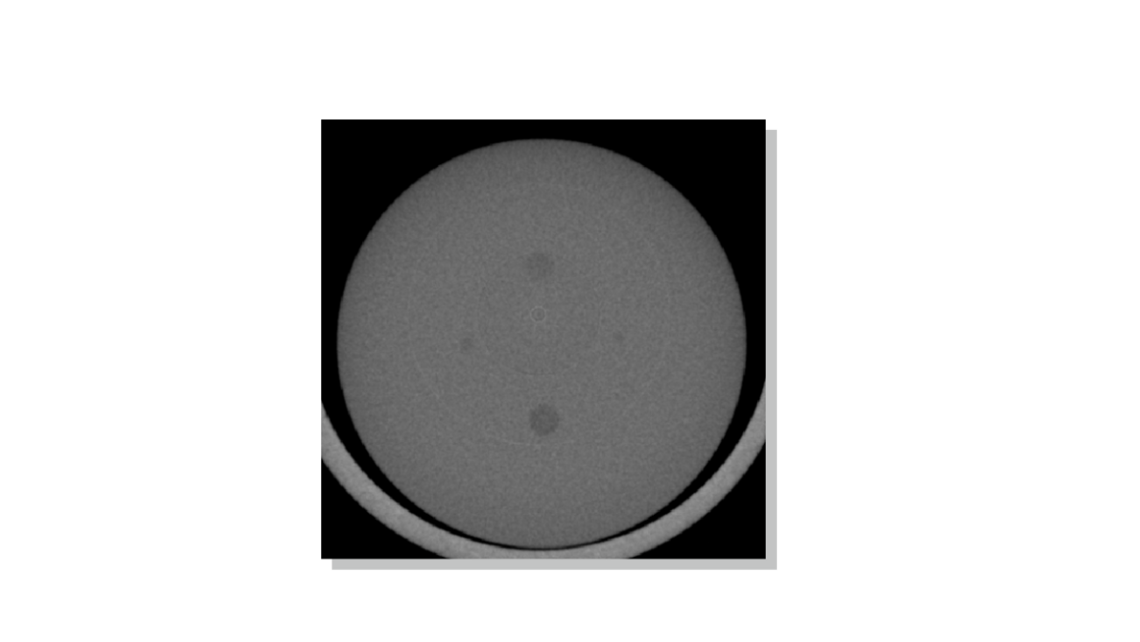

Micro-CT LC Phantom, V1, QRM-70108

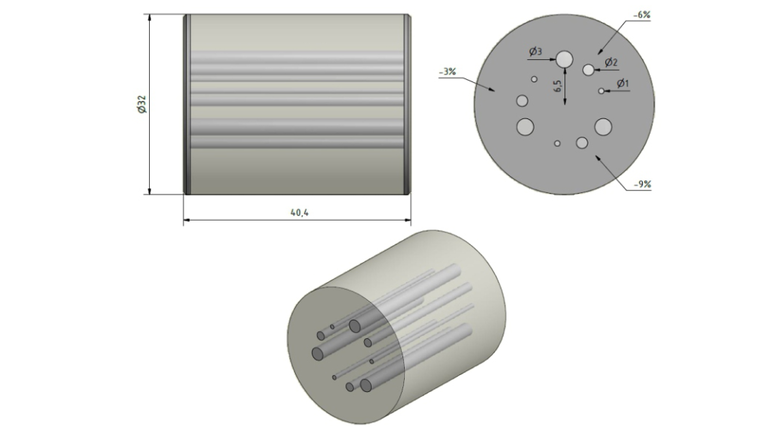

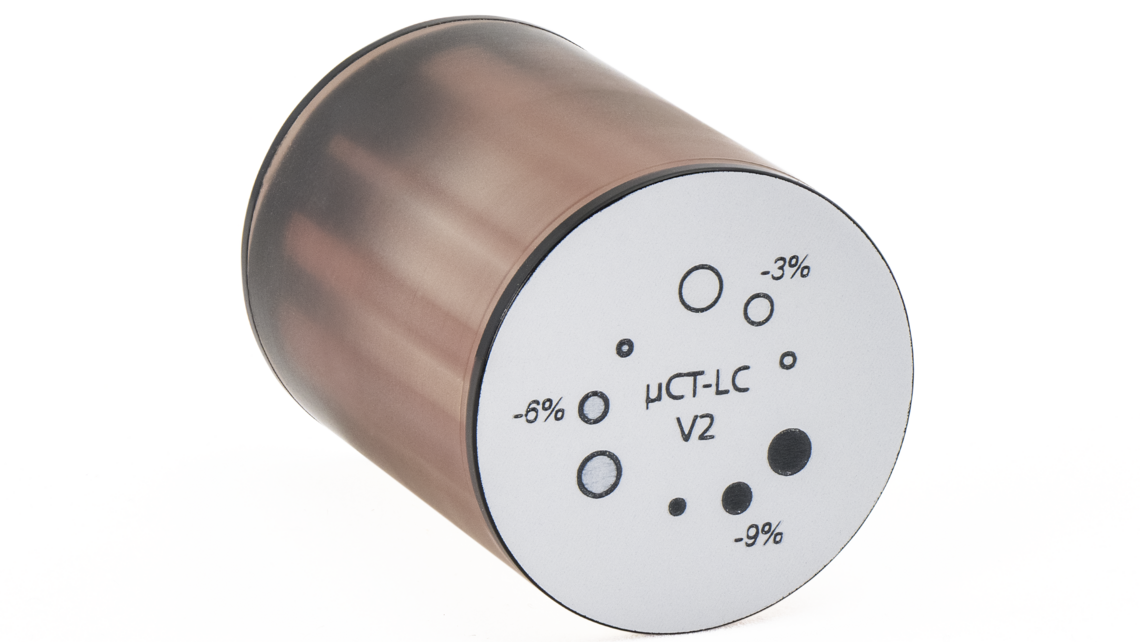

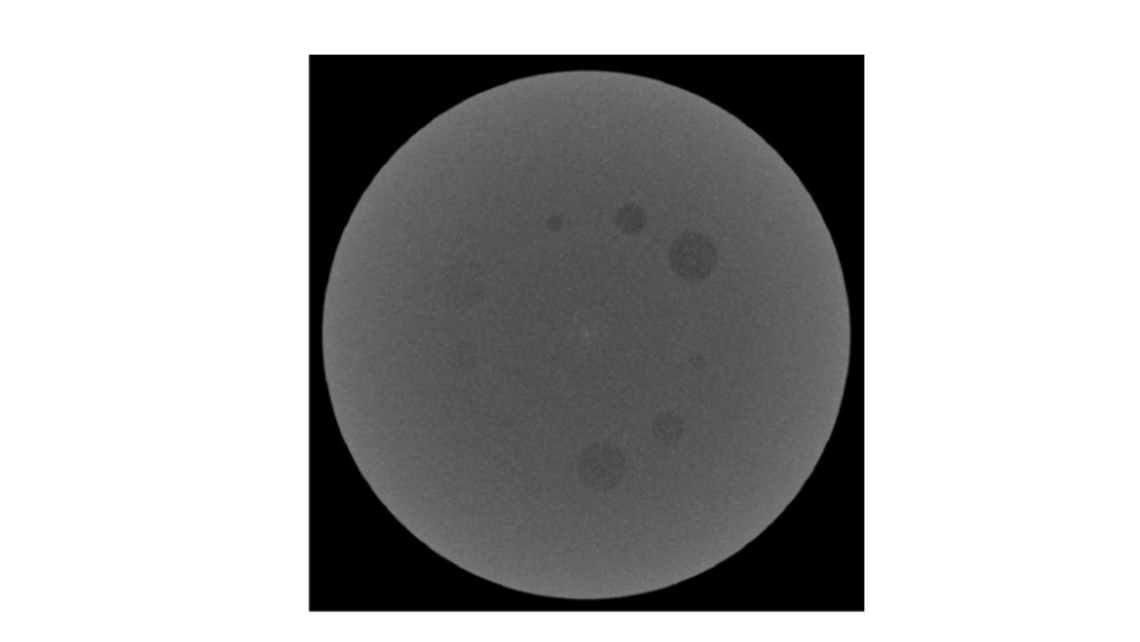

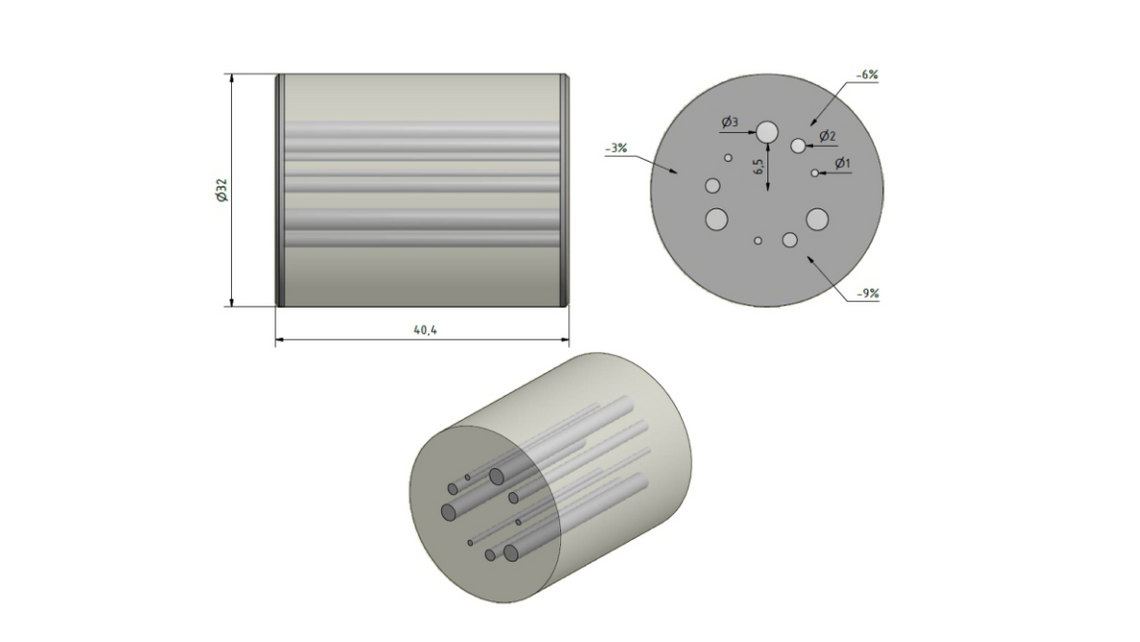

Micro-CT LC Phantom, V2, QRM-70124

Specifications

Base material: resin

Low contrast inserts:
Diameter: 1 mm / 2.5 mm
approx. contrast: -4 % / -8 %

Dimensions for mouse-size phantom:
Diameter: 32 mm
Length: 40 mm
Weight: 35 g
