Micro-CT Water Phantom

For noise and uniformity measurements at Micro-CT systems

OVERVIEW

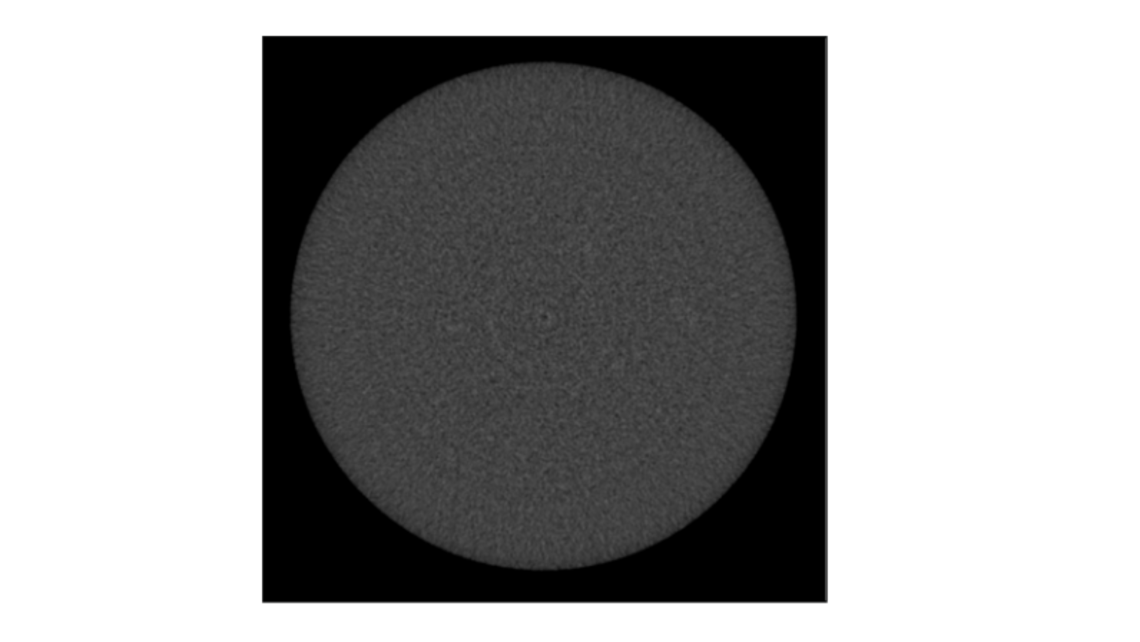

  • Water fillable phantom to measure noise and homogeneity
  • Different phantom diameter available

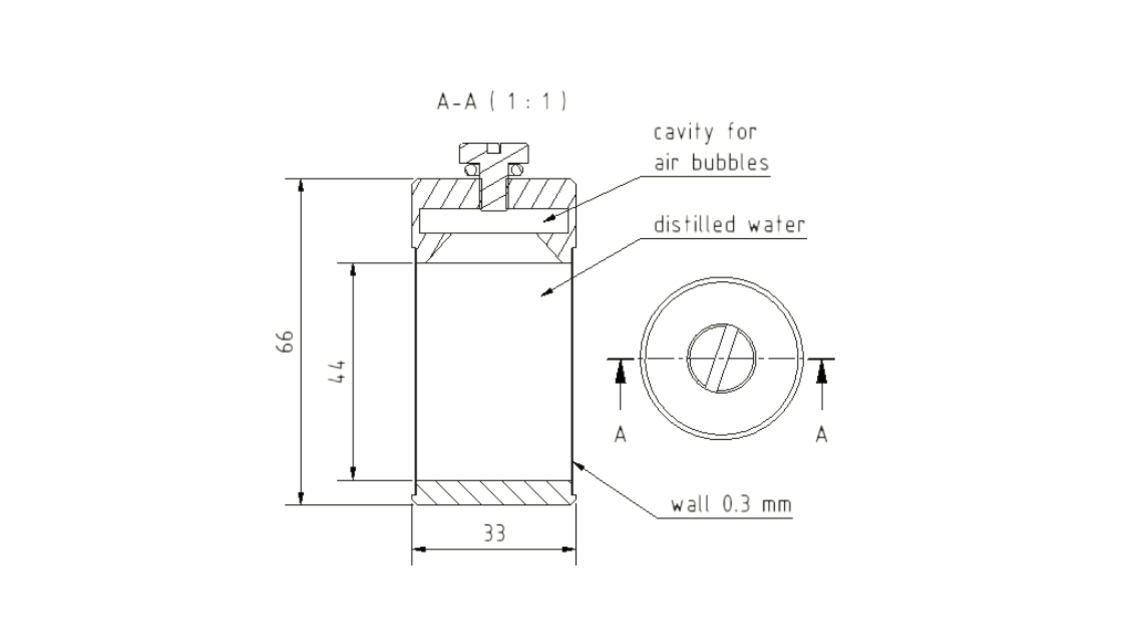

  • Bubble free: extra cavity for air bubbles



The Micro-CT Water Phantom is a hollow cylinder, which can be filled with distilled water. Due to its design, it can be used in a rotating gantry or in upright position.

The opaque phantom can be delivered with 0.2 mm wall thickness and provides a high mechanical stability. A transparent version made of PMMA with a wall thickness of 0.3 - 0.5 mm is also available.

Standard phantoms are scaled down from the diameter of an average human trunk (32 cm) to that of a fat mouse (32 mm).

Different dimensions and insert substances can be produced upon request.

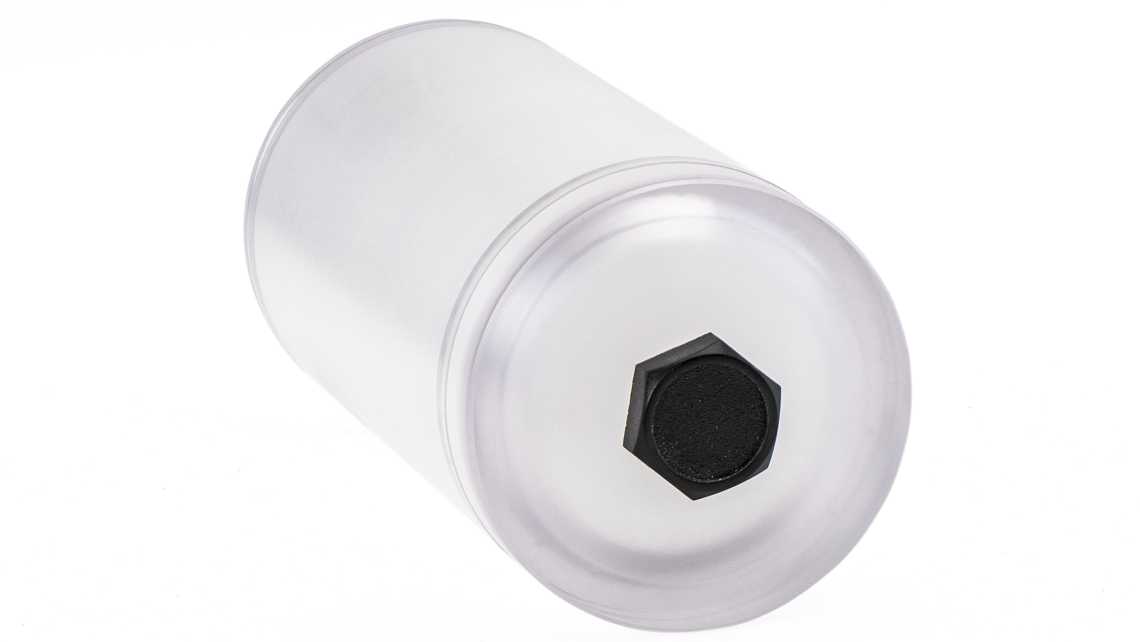

Micro-CT Water Phantom, M60, QRM-70110
Micro-CT Water Phantom, M32, QRM-70111
Micro-CT Water Phantom, M20, QRM-70112

Specifications

Base material sturdy resin or PMMA
Wall thickness: 0.2- 0.5 mm
Water filling: Distilled water (e.g. HPLC-grade)

Dimensions for mouse-size phantom:
Diameter: 32 mm
Other diameters: 20 mm and upon request
Length: 40 mm
Weight: 20 g

Related Downloads

Spec
Micro-CT Water Phantom ( 2 MB )
