Pediatric Thorax and Abdomen Phantom

Anthropomorphic phantoms for pediatric applications

  • For image quality purposes and/or dose estimation
  • Different sizes available (newborn, 1-, 3-, 6-, 12- or 15-years)
  • Dosimetry versions available

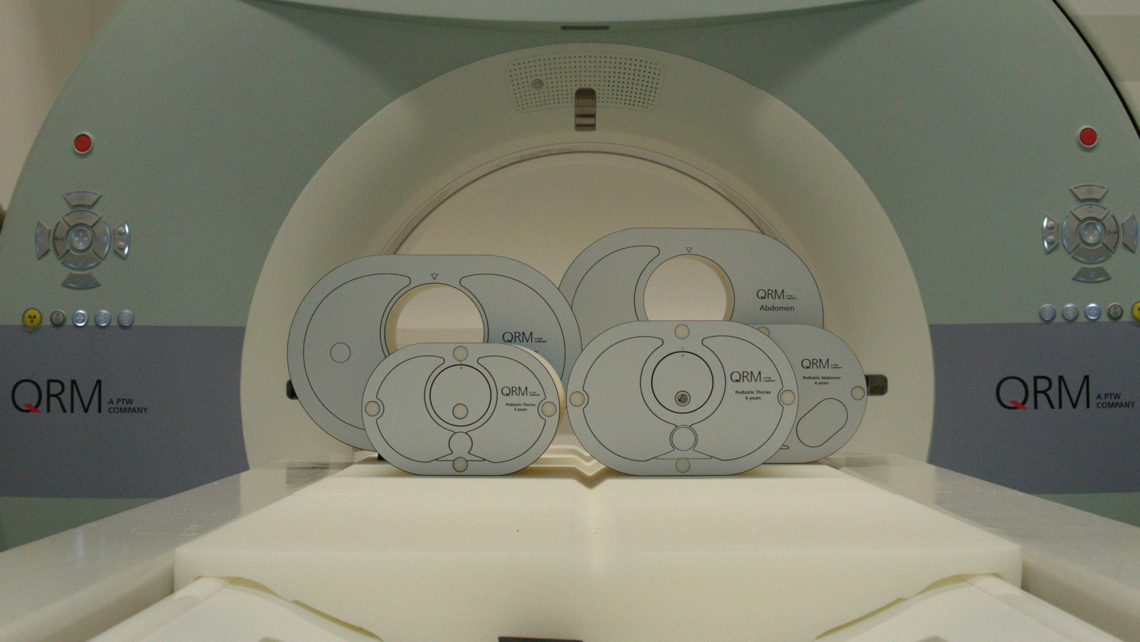

The pediatric thorax and abdomen phantoms in the size of a newborn up to a young child are an excellent tool to validate IQ parameters or dose in a (semi-)anthropomorphic surrounding.

The anthropomorphic-shaped phantoms cover different ages and, hence, provide an opportunity for realistic measurements of dose and image quality in X-ray diagnostics.

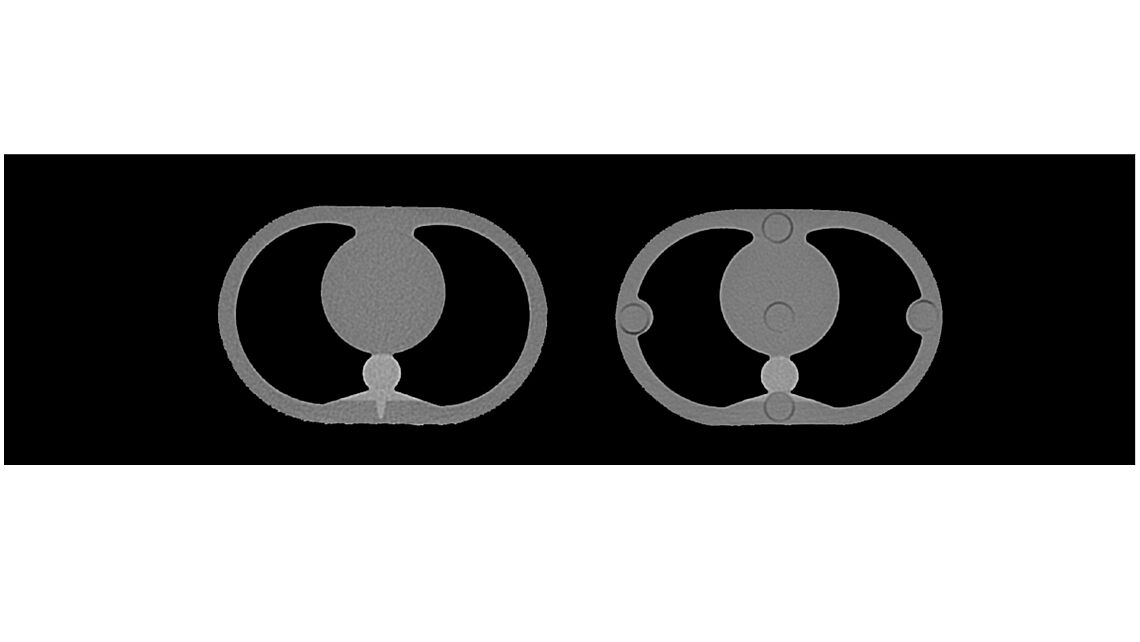

The phantoms are designed to provide realistic organs and shapes. The Pediatric Thorax comprises artificial lung lobes and a spine insert embedded within a shell of soft tissue-equivalent material. The Pediatric Abdomen comprises a liver, a spleen and a spine insert embedded within a shell of soft tissue-equivalent material. Dose bores are positioned in accordance to the CTDI recommendations.

All materials used mimic the physical X-ray attenuation properties and density of real human tissues.

The pediatric phantoms house a central replaceable insert adjusted to the size of the phantom. A tissue-equivalent insert with dose bore is included. Optional image quality test inserts (e.g. low contrast, spatial resolution, etc.) can be requested as a custom-made solution.

  • Pediatric Thorax and Pediatric Abdomen Phantoms

Pediatric Thorax Phantom, newborn, QRM-20120

Pediatric Thorax Phantom, 1 year, QRM-20137

Pediatric Thorax Phantom, 3 years, QRM-20138

Pediatric Thorax Phantom, 6 years, QRM-20121

Pediatric Thorax Phantom, 12 years, QRM-20123

Pediatric Thorax Phantom, 15 years, QRM-20139

Pediatric Abdomen Phantom, newborn, QRM-20125

Pediatric Abdomen Phantom, 1 year, QRM-20140

Pediatric Abdomen Phantom, 3 years, QRM-20141

Pediatric Abdomen Phantom, 6 years, QRM-20142

Pediatric Abdomen Phantom, 12 years, QRM-20143

Pediatric Abdomen Phantom, 15 years, QRM-20144





Thorax Phantom xy (mm) z(mm) circumf. (mm) BMI
Newborn (QRM-20120) 135x90 150 330
1 year (QRM-20137) 150x100 150 415 17
3 years (QRM-20138) 180x120 150 497 16
6 years (QRM-20121) 210x140 150 580 16
12 years (QRM-20123) 240x160 150 663 18
15 years (QRM-20139) 270x180 150 745 20
18 years/adult 300x200 150 828 21
Body material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Lung: app. -800 HU (at 120 kV)
Spine: corticalis / spongiosa (bone-like*)
* Offers approximate attenuation properties as trabecular and cortical bone of the specific age
Abdomen Phantom xy (mm) z(mm) circumf. (mm) BMI
Newborn (QRM-20125) 135x90 150 330
1 year (QRM-20140) 150x100 150 415 17
3 years (QRM-20141) 180x120 150 497 16
6 years (QRM-20142) 210x140 150 580 16
12 years (QRM-20143) 240x160 150 663 18
15 years (QRM-20144) 270x180 150 745 20
18 years/adult 300x200 150 828 21
Body material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Liver /Spleen: tissue-equivalent (app. 60 HU at 120 kV)
Spine: corticalis / spongiosa (bone-like*)
* Offers approximate attenuation properties as trabecular and cortical bone of the specific age

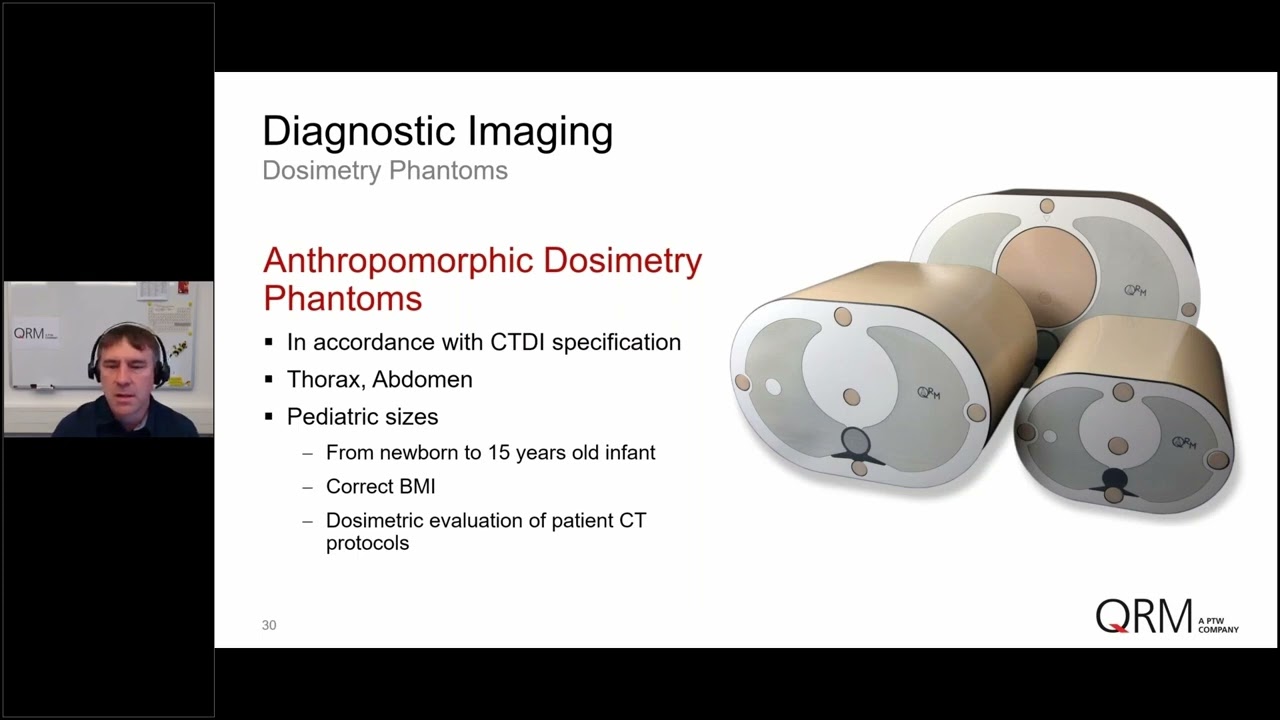

Related Videos
