Multi-Energy QA Phantom

For testing different types of Multi-Energy, Dual-Energy and Photon-Counting CT Protocols

  • For different types of CT systems with dual-energy, multi-energy or photon-counting setups
  • Test multi-energy spectral CT protocols and post-processing techniques

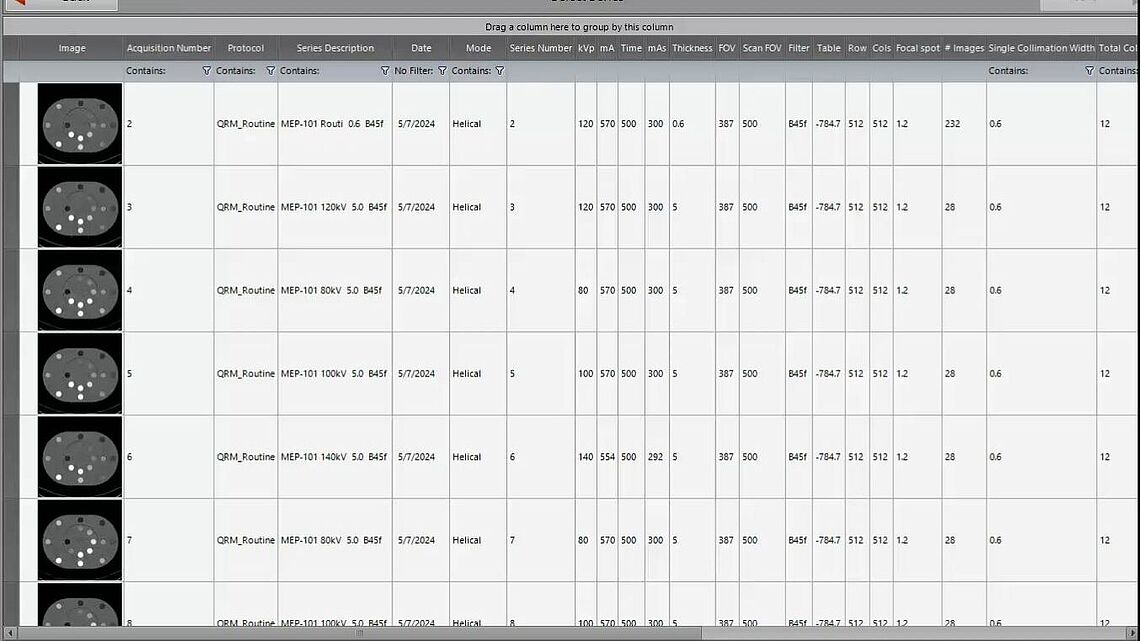

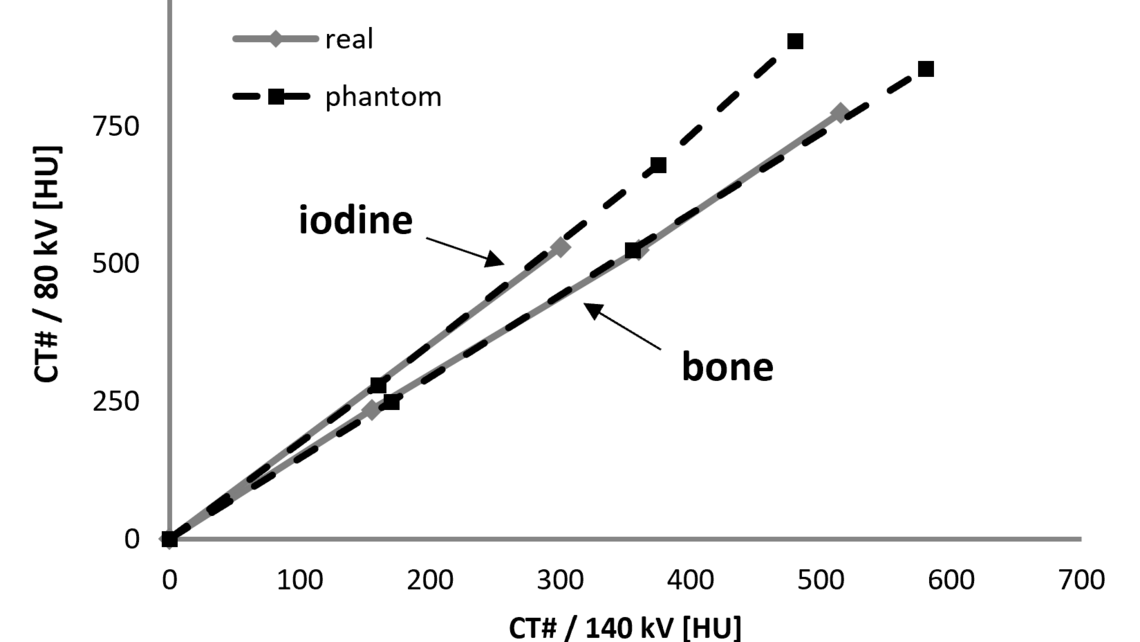

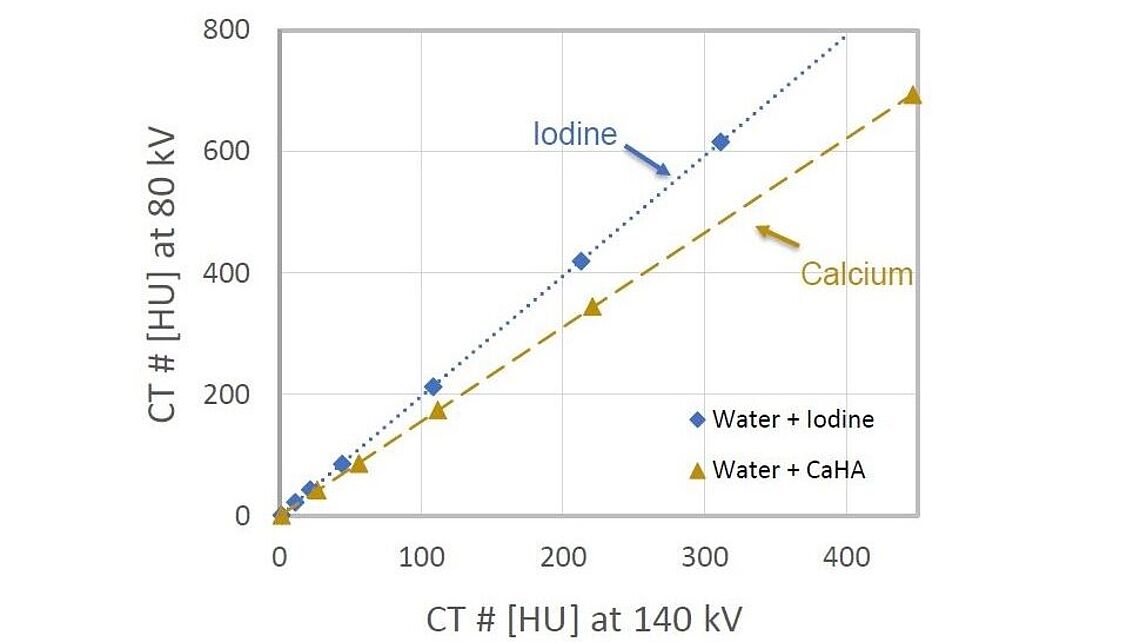

  • Decompose Iodine and CaHA levels

The phantom is designed to test different types of CT systems with dual-energy, multi-energy or photon counting setups. Image acquisition and image processing at multiple energy levels is improving visualization for computed tomography. The QRM Multi-Energy QA phantom is ideally suited to test multi-energy spectral CT protocols and post-processing techniques.

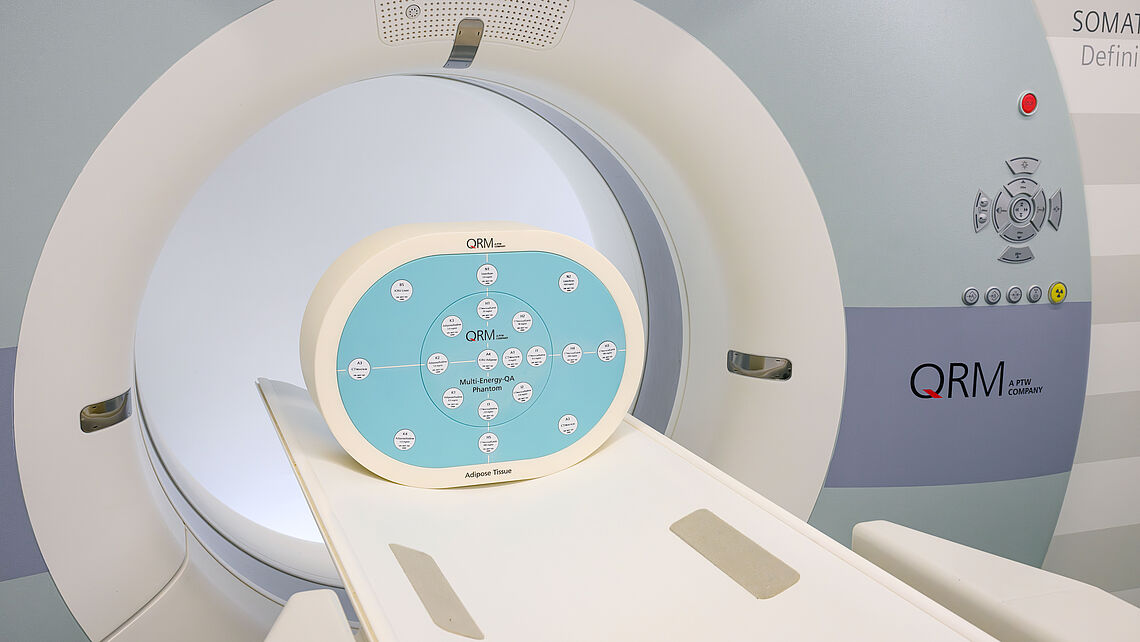

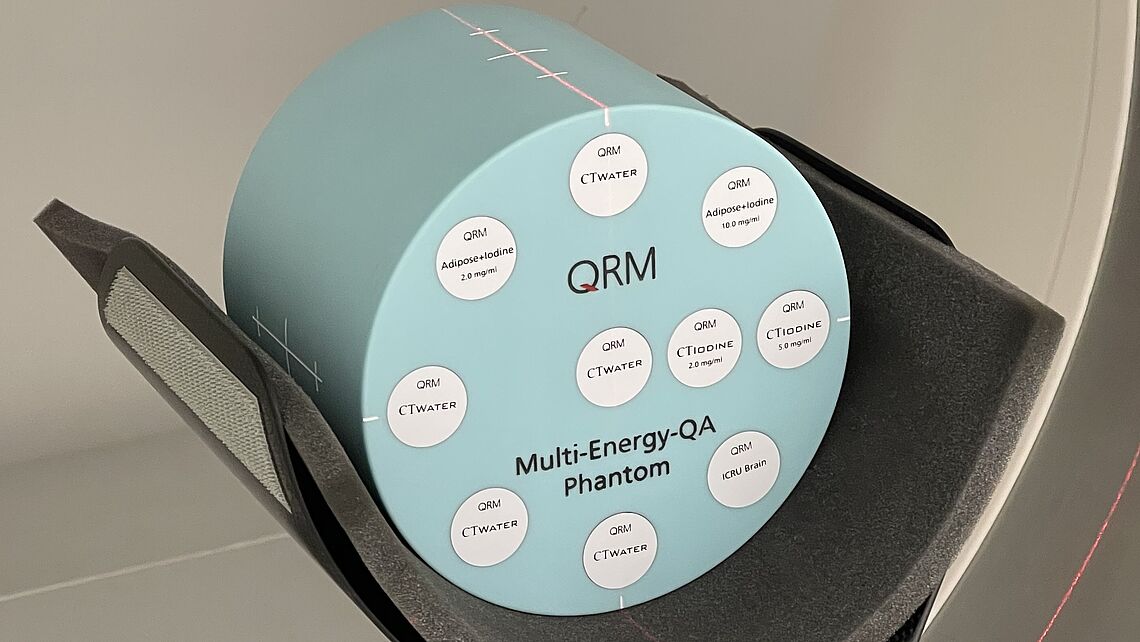

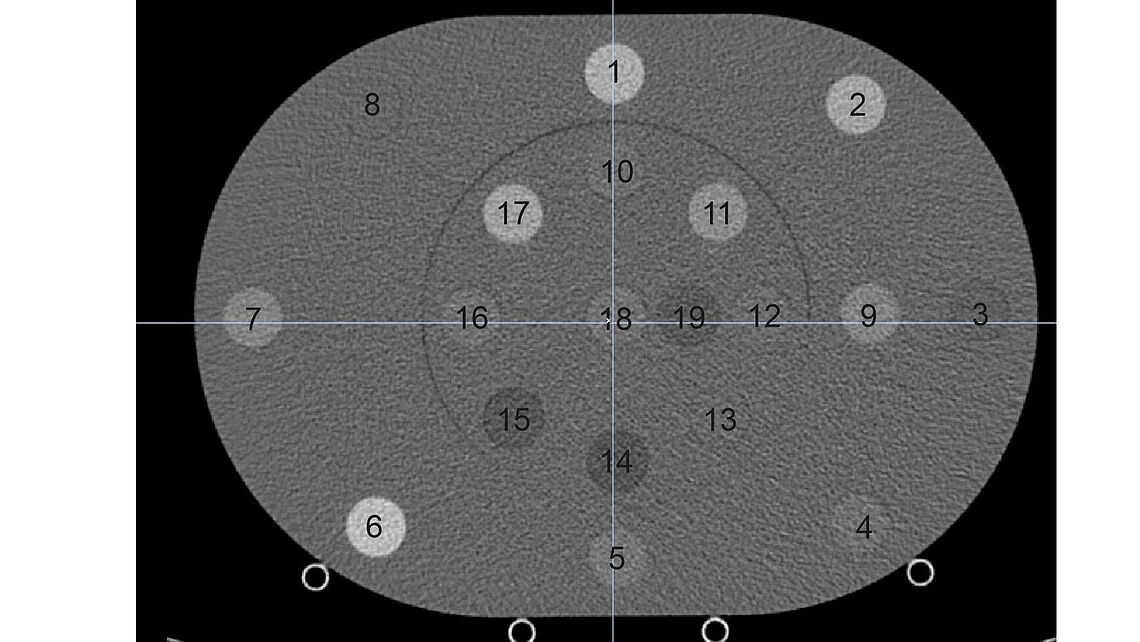

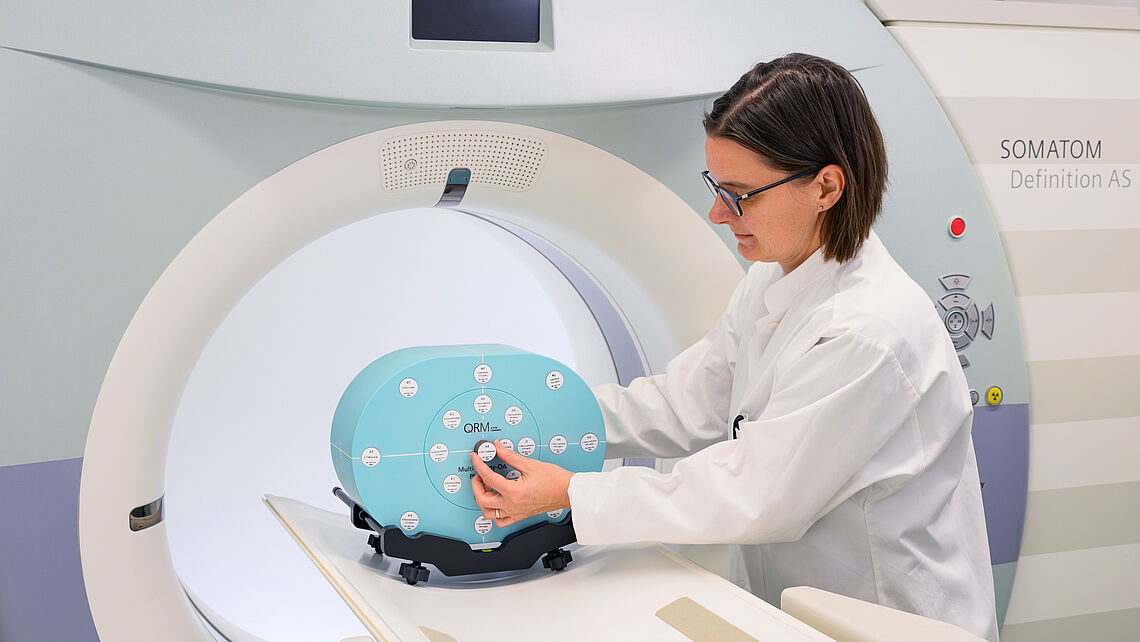

The phantom consists of a removable/stand-alone head phantom (Ø 160 mm cylinder) with 10 holes (Ø 25 mm) to house different inserts and an oval (QRM-10150) or an optional circular (QRM-10151) body, equipped with 9 bores. Body and Head section are made of water-equivalent material (CTwater).

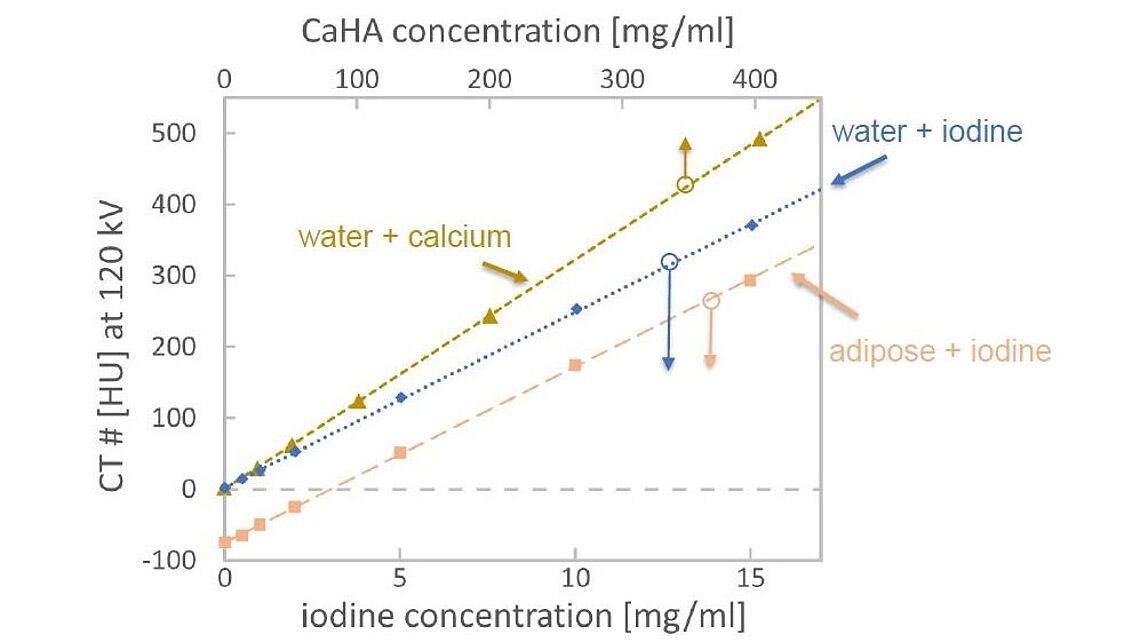

The phantom is equipped with a set of 26 inserts including rods enriched with several contrast media (water+iodine, adipose+iodine) as well as calcium (water+calcium hydroxyapatite), each material with different concentrations. Additionally, water- and soft tissue-equivalent inserts (adipose, liver, brain - ICRU Report 44 and 46) are included. Mass density, concentration and electron density are provided for all materials.

Other materials (e.g. blood+Iodine, various ICRU-tissues etc.) can be manufactured upon request.

Optionally, all inserts (recommended for/especially the higher attenuating materials) can be manufactured with reduced material diameter (e.g. Ø 10 mm) embedded in a water-equivalent shell (in total Ø 25 mm).

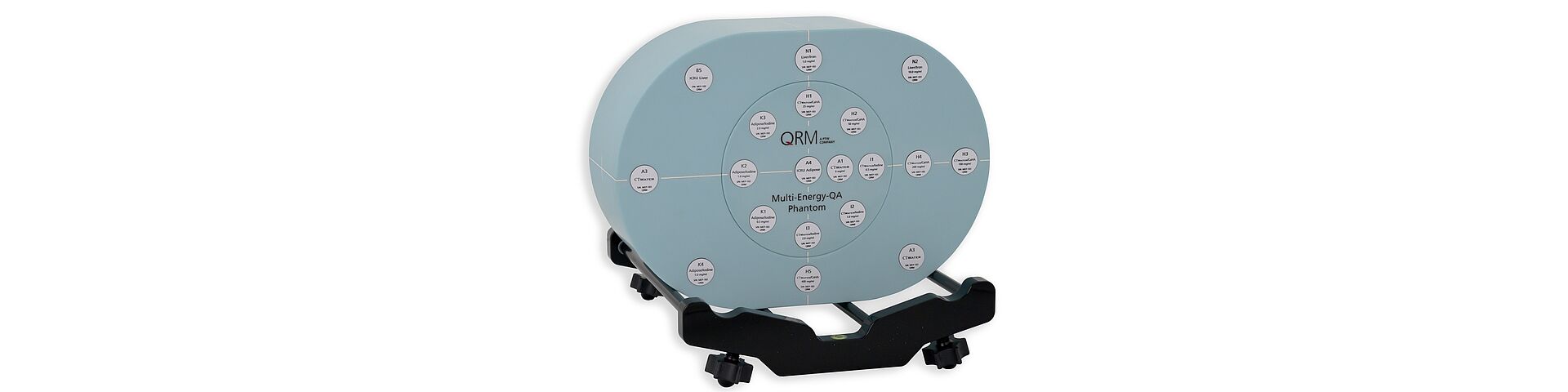

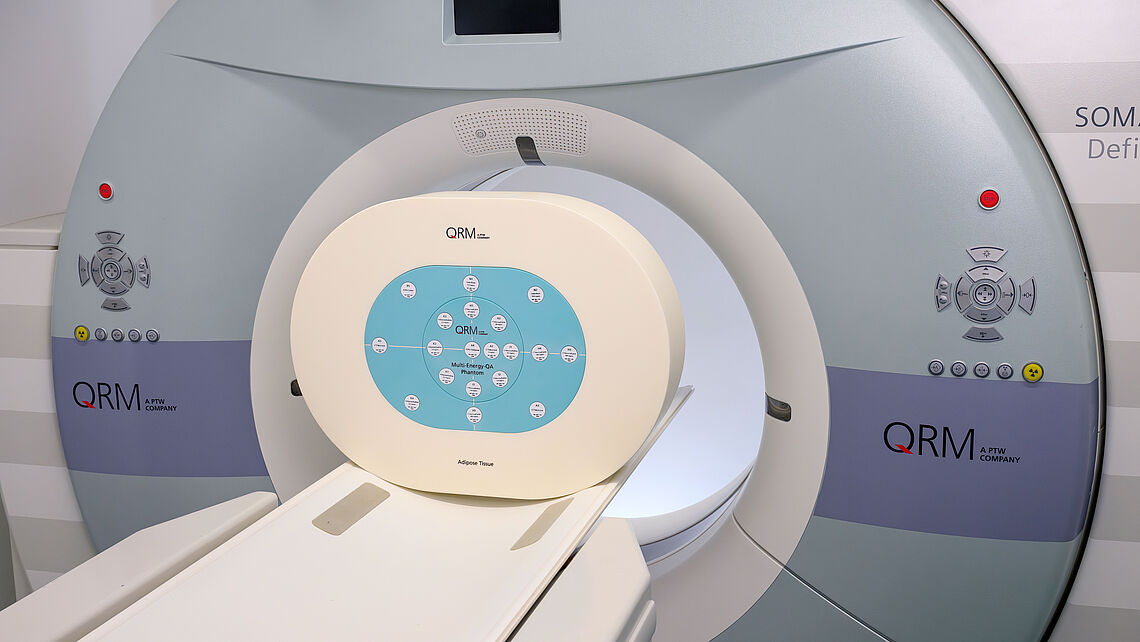

Multi-Energy QA Phantom with stand, QRM-10150

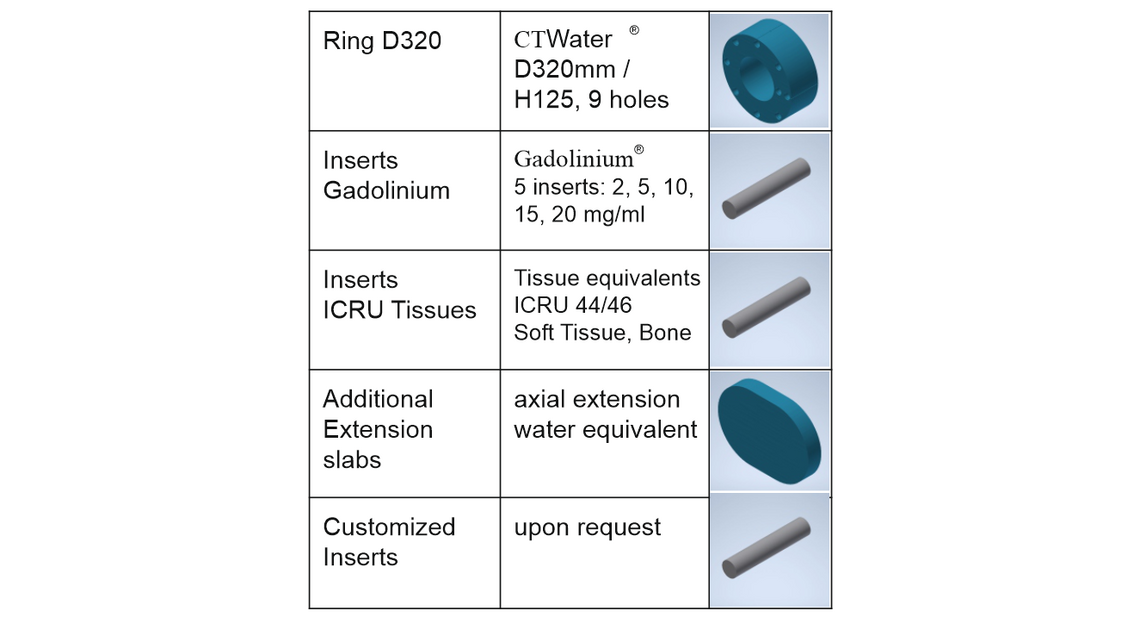

D320 Ring for Multi-Energy QA Phantom, QRM-10151

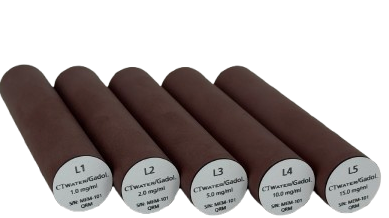

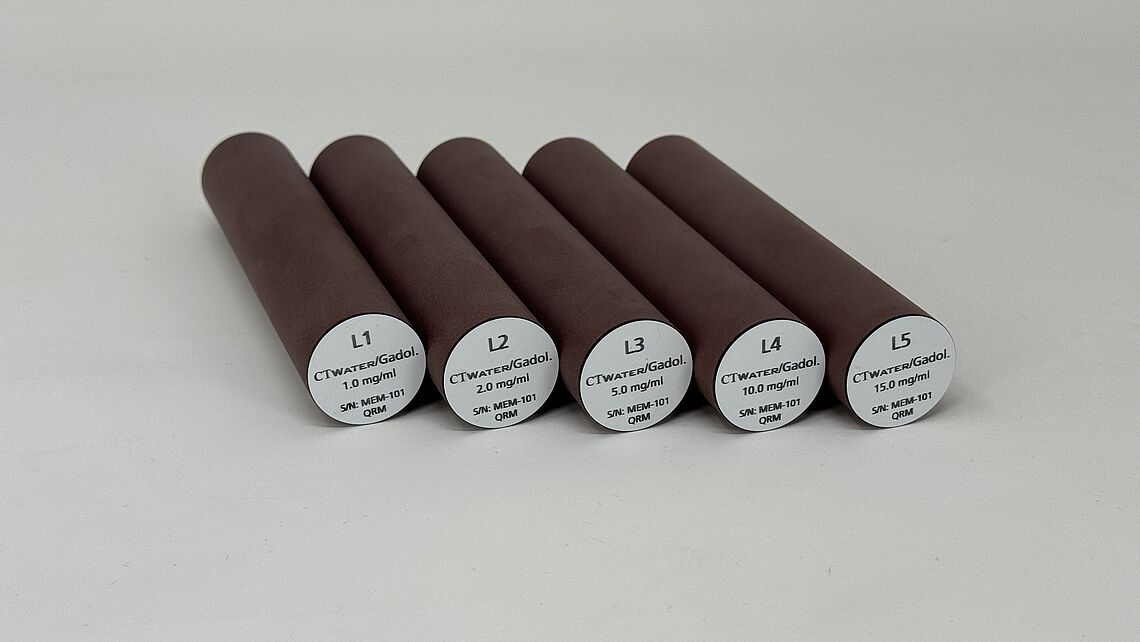

MEP - Set of 6 Gadolinium rods, QRM-10152

MEP - Set of 11 ICRU Tissue-Equivalents, QRM-10153

MEP - Set of CTwater rods (2 pcs.), QRM-10154

MEP - Set of CTwater rods (15 pcs.), QRM-10155

MEP - Expansion Set, QRM-10156

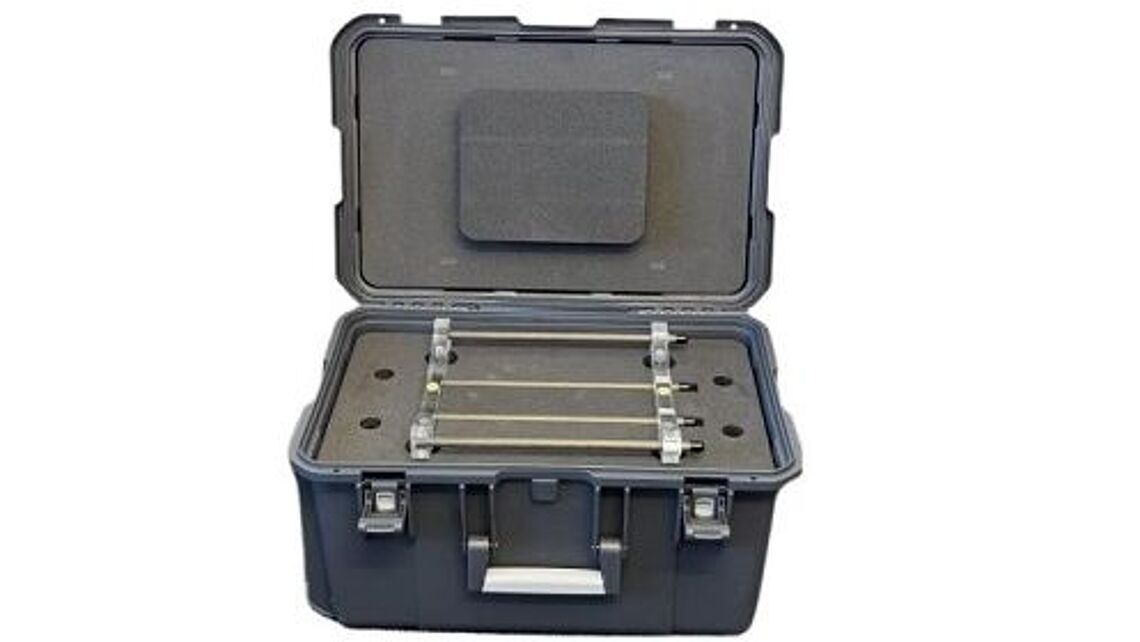

MEP - Transport Case MEP, QRM-10157

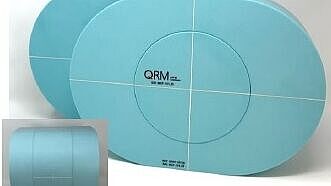

MEP -Extension Ring L, Adipose, QRM-10158

MEP -Extension Ring XL, Adipose, QRM-10159

MEP - Transport Case Expansion Set, QRM-10160

MEP - Fillable Rod, D25, QRM-10161



Technical Specifications

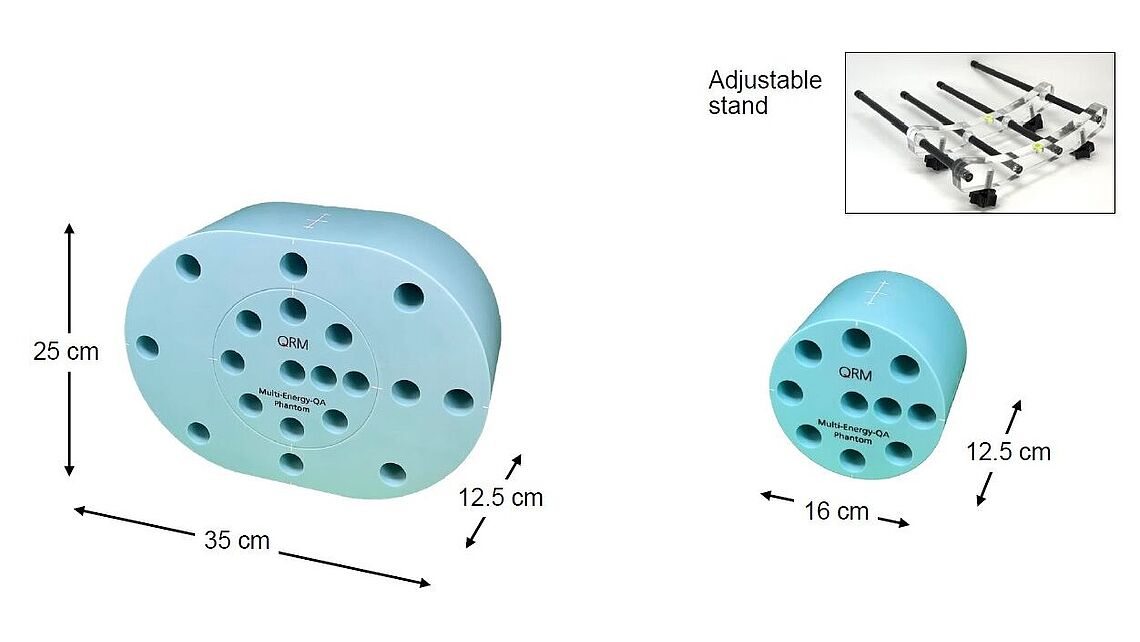

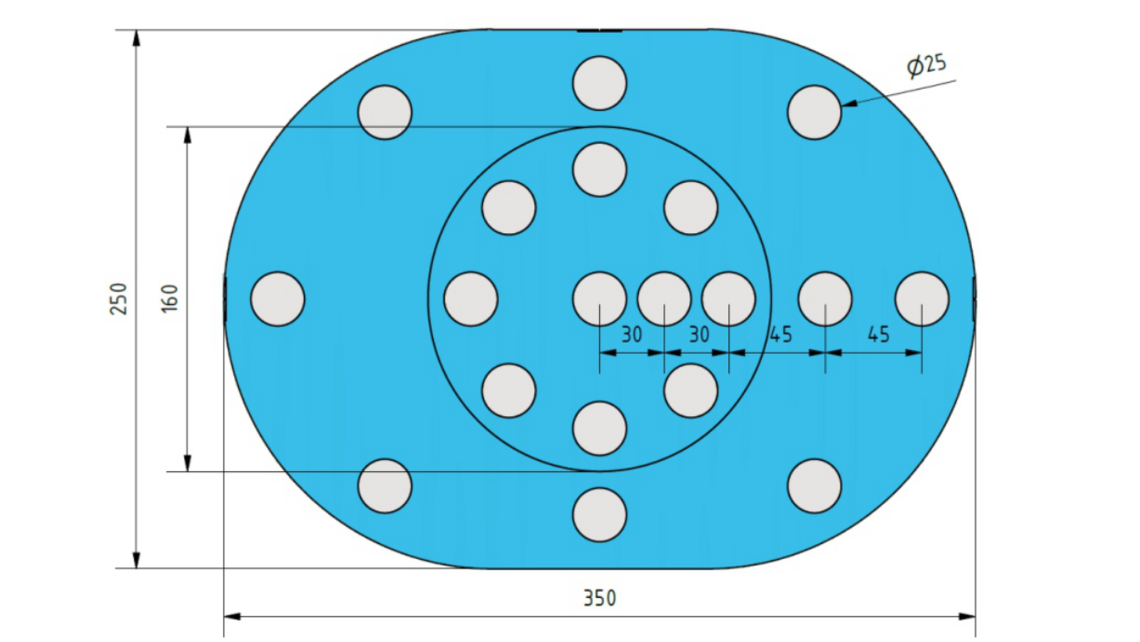

Body
Phantom diameter 250 mm x 350 mm
Phantom height 125 mm
Holes 9 pcs., Ø 25 mm

Head insert:

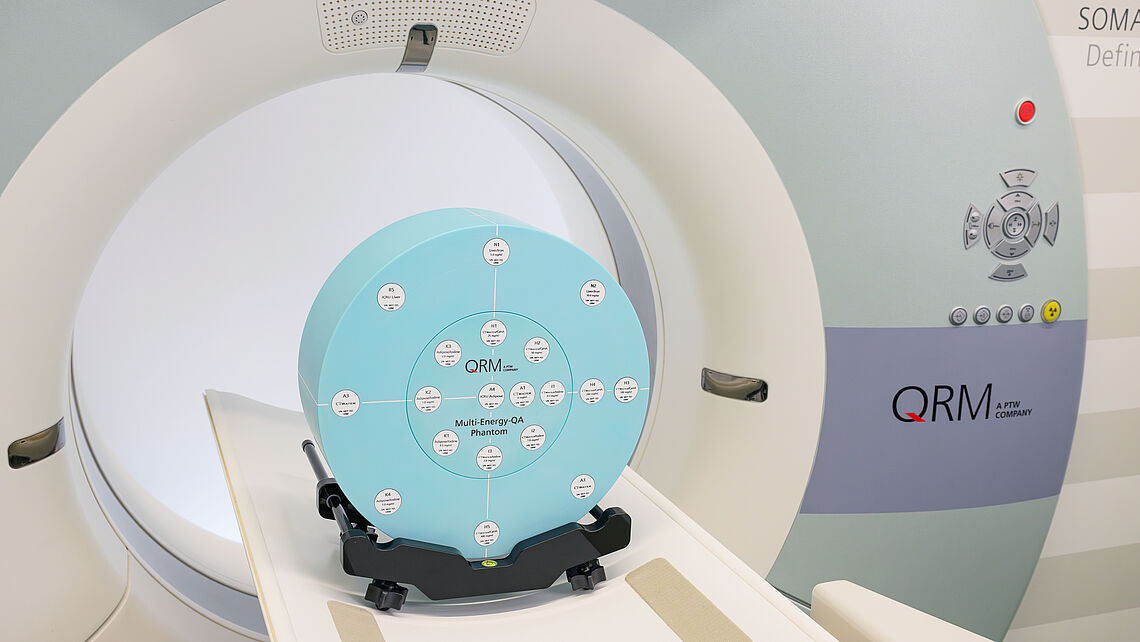

Phantom diameter 160 mm
Phantom height 125 mm
Holes 10 pcs., Ø 25 mm

Material CTwater (water-equivalent)

Inserts:

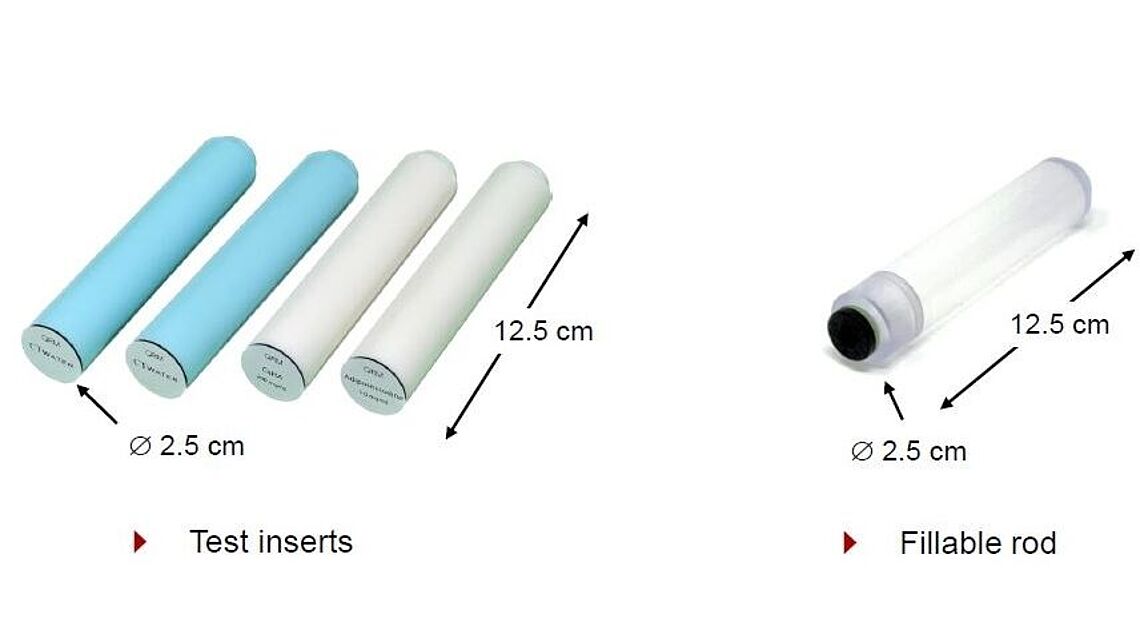

Diameter: 25 mm
Length: 125 mm

Phantom weight 6.0 kg
Includes Stand
Includes Transport Case
26 inserts included:
3 x CTwater
6 x Water + Iodine 0.5, 1.0, 2.0, 5.0, 10.0 and 15.0 mg/cm³
6 x Adipose+Iodine 0.5, 1.0, 2.0, 5.0, 10.0 and 15.0 mg/cm³

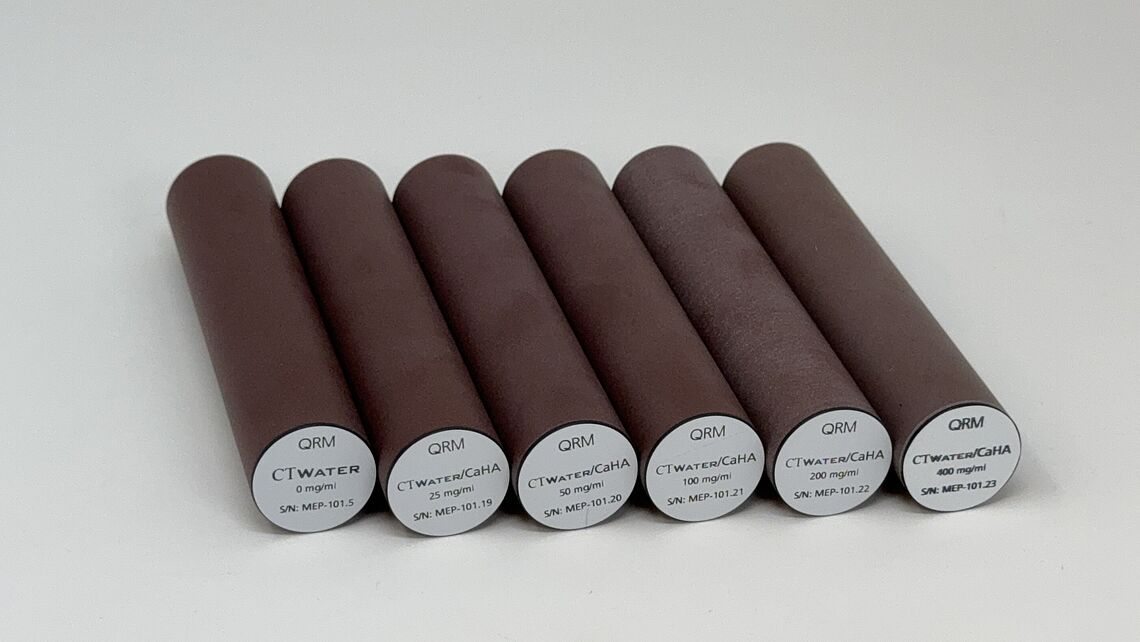

5 x Water + Ca hydroxyapatite 25, 50, 100, 200, 400 mg/cm³
2 x Liver + Iron 5.0 and 10 mg/cm³
1 x ICRU Adipose
1 x ICRU Liver
1 x ICRU Brain
1 x Tube (Fillable rod)

Calibration protocol:

Physical density, concentration, electron density, electron density relative to water (additional values upon request)

*Accuracy ± 5 HU of specified values.

**Specified values. Nominal values can vary with respect to manufacturing method and imaging device!
