Bone

Material to mimic real human bone with respect to its physical X-ray attenuation properties

OVERVIEW

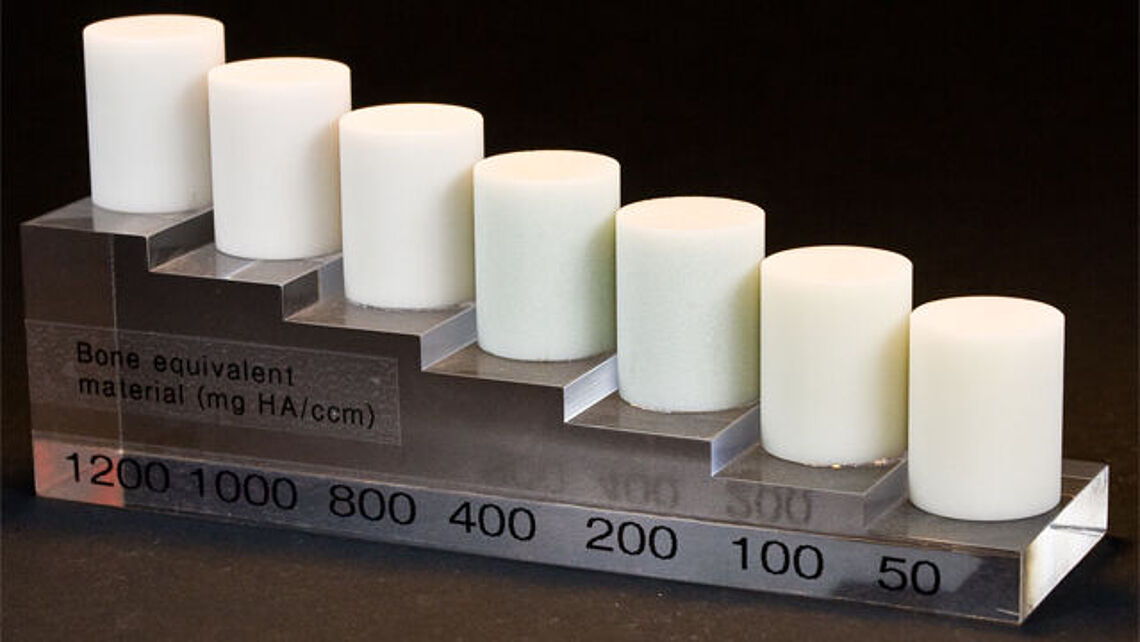

  • Solid material that mimics human bone

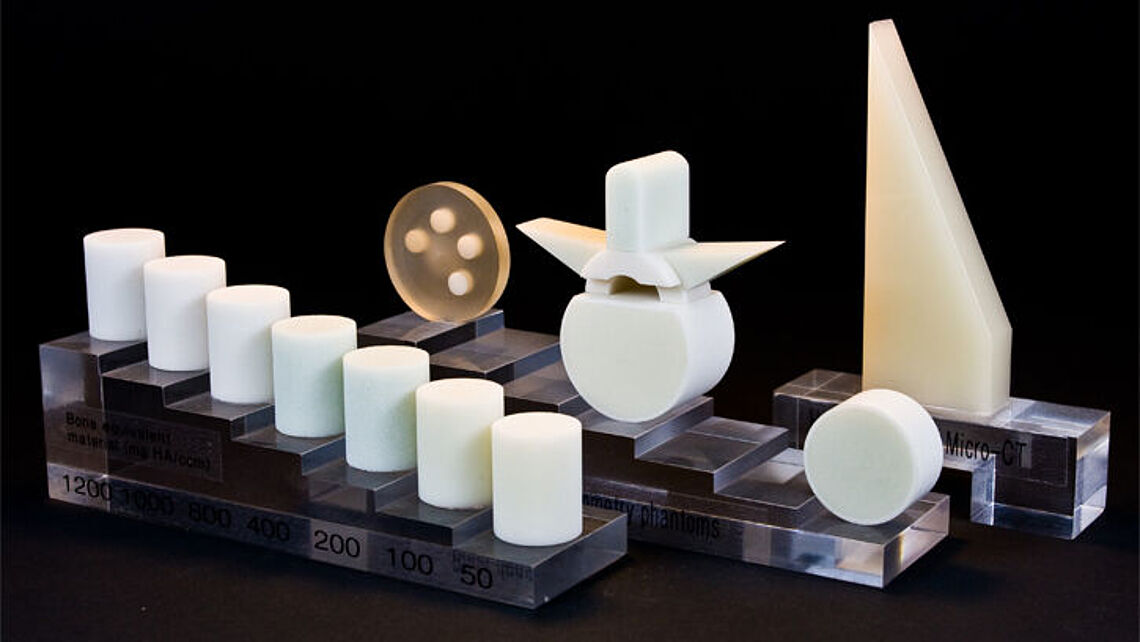

  • Available in different shapes and concentrations of Calcium Hydroxyapatite (CaHA)



Calcium Hydroxyapatite (CaHA) is the basic component of human bone (> 40% CaHA). It is ideal for the following applications:

  • bone calibration
  • bone density measurements
  • bone (spine, hip, etc.) in anthropomorphic phantoms
  • Ca-plugs and stenosis in coronary arteries
  • high attenuating spheres.

The basic material, which is mixed with a specific fraction of CaHA, is available as tissue equivalent or fat.

Different densities of CaHA or specified CT HU values are available.

Bone

Specifications

Concentrations of Calcium Hydroxyapatite (CaHA)
for CT: 0 - 1000 mg HA / cm³
for Micro-CT: 0 - 1200 mg HA / cm³

Related Downloads

Spec
Bone Equivalent Materials - CaHA ( 2 MB )
