Cranial CT Phantom

Simulation of the human brain anatomy for CT/FD-CT imaging

OVERVIEW

Based on a soft tissue-equivalent plastic with a constant CT-number for different kV settings and a surrounding bone structure with an X-ray absorption similar to the human skull, two different sections of the human brain are available.

One section describes the base of the skull with uniform soft tissue and bony structures equivalent to the temporal bones. This section is suitable to demonstrate and evaluate the image quality in the base of the skull, especially affected by beam hardening effects, partial volume effects and artifacts caused by scanner instabilities, e.g., anode wobble.

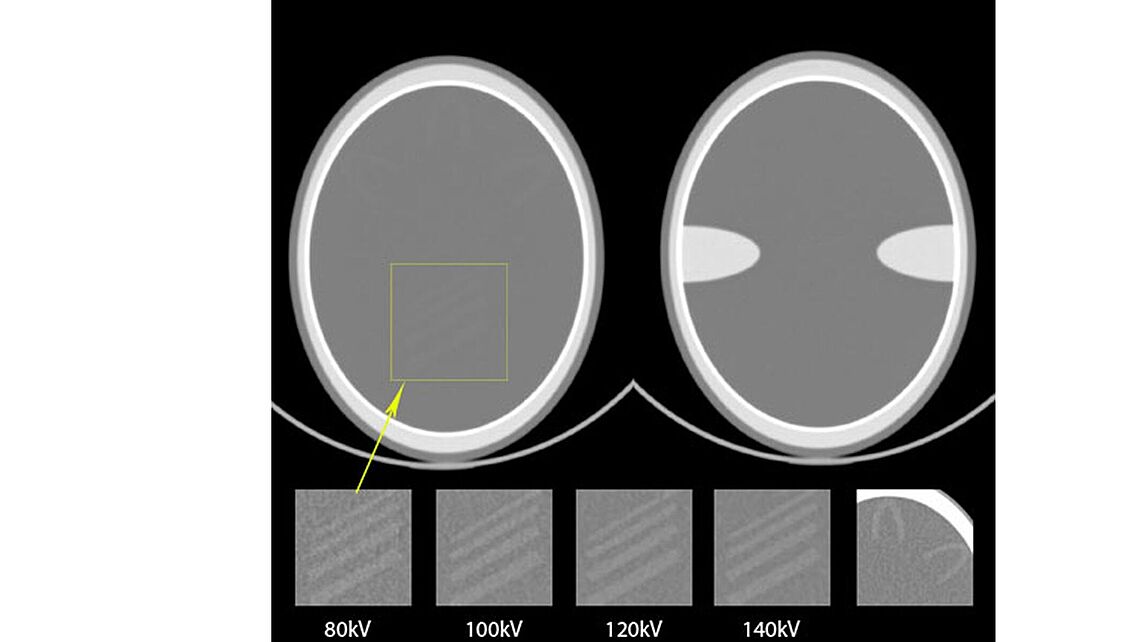

The second section was designed to test the low-contrast capabilities of the imaging system. Within the uniform soft tissue several low-contrast structures simulate typical cortex structures and central low-contrast structures of the brain.

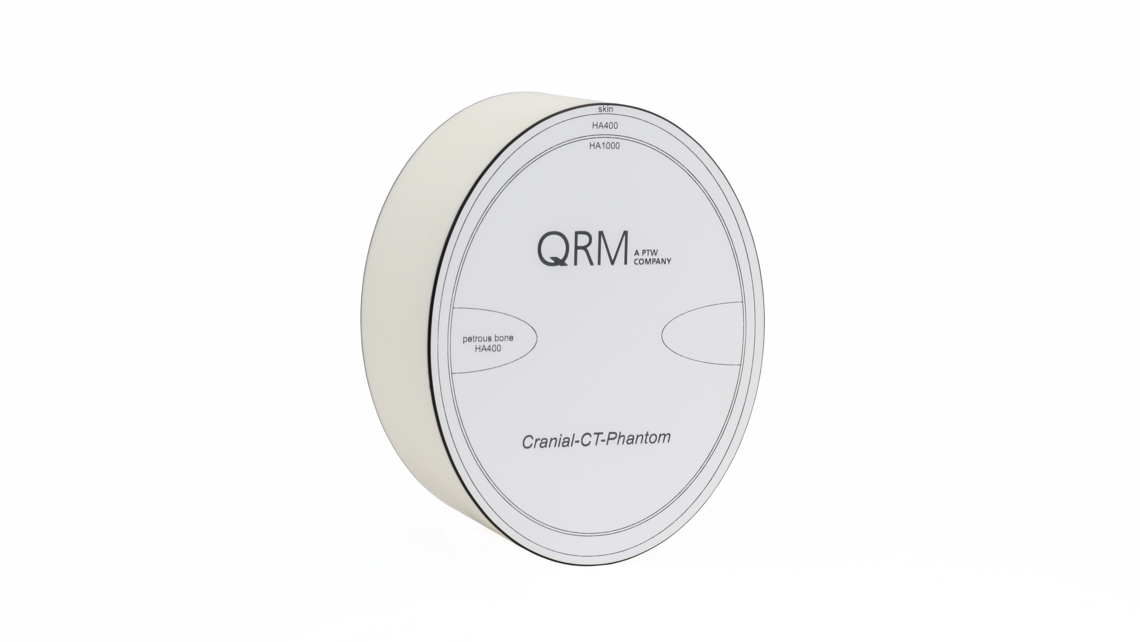

Cranial CT Phantom, QRM-20113

Specifications

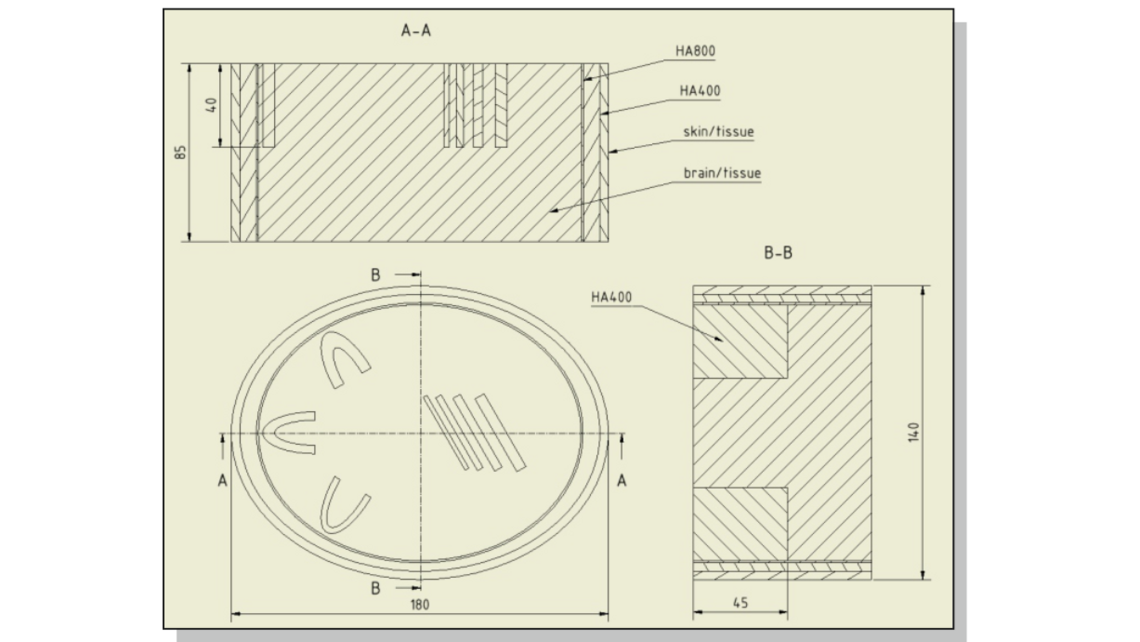

Dimensions: 180 mm x 140 mm x 85mm
Dense bone: 1 mm
Medium dense bone: 8 / 4 mm
Skin (tissue): 4 mm

Soft tissue: nominal 35 HU (80 t 140 kVp, ± 5 HU)
Low contrast structures: + 7 HU (±2 HU) above surrounding tissue
Medium dense bone: 400 mg HA / ccm
Dense bone: 1000 mg HA / ccm
