Dental CBCT QA Phantom

For testing the imaging performance of dental cone-beam CT systems

  • For testing the imaging performance of dental cone-beam CT systems
  • A compact easy-to-use phantom for acceptance and constancy tests
  • Allows 3D MTF measurements

Measure imaging performance of dental Cone-Beam CT equipment. Perform acceptance and constancy tests with a compact easy-to-use phantom.

The Dental CBCT Phantoms (basic or expert versions available) are designed to evaluate the imaging performance of Cone-Beam CTs, e.g., in dental application or for Digital Volume Tomography (DVT) systems.

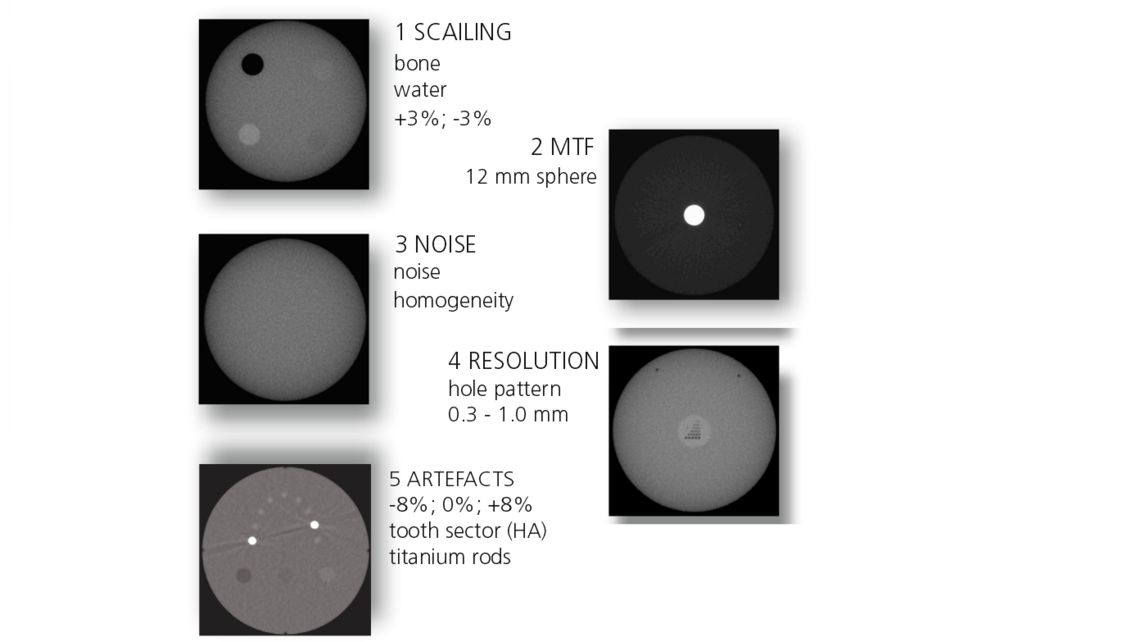

The following image quality parameters can be determined according to DIN IEC 61223-3-5 or DIN IEC 61223-2-6:

  • CT value uniformity
  • CT value accuracy
  • Image noise
  • Contrast-to-noise ratio (CNR)
  • Spatial resolution (3D MTF, sphere).

The expert version additionally allows the determination of the spatial resolution (visual, hole pattern) and checks the artifact behavior of metal, bone and soft tissue.



Dental Cone-Beam Phantom, Basic, QRM-10130

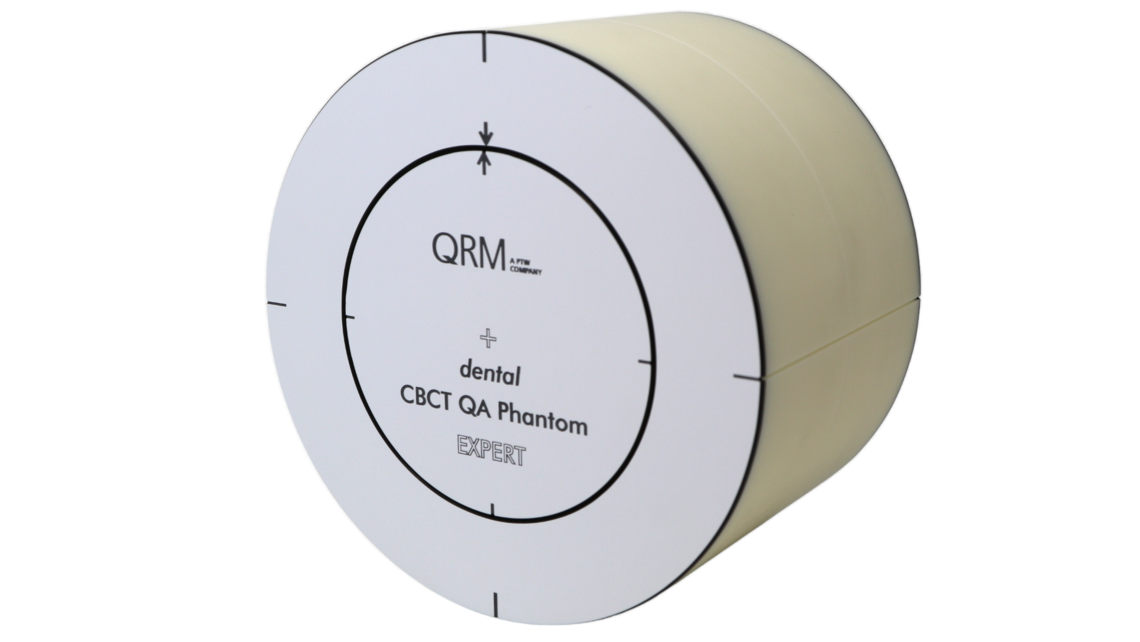

Dental Cone-Beam Phantom, Expert, QRM-10131

Phantom diameter: 160 mm
Phantom height: 150 mm
Body material: CTwater 0 HU @ 80 - 140 kV
3 sections:
Inserts (length 17.5 mm):
  Section 1: 4 inserts with Ø 13 mm
  Section 2: blank, water equivalent for noise, uniformity
  Section 3: Sphere for 3D-MTF, Al, Ø 12 mm
Phantom diameter: 100 mm
Phantom height: 100 mm
Body material: CTwater 0 HU at 80 - 140 kV

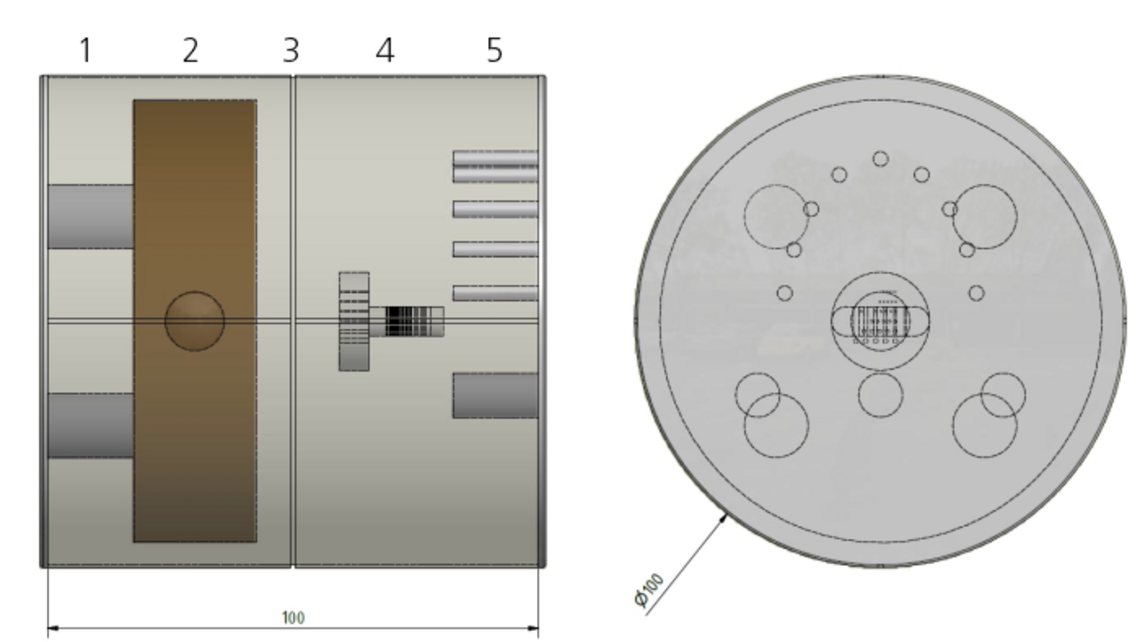

5 sections:
Inserts (length 17.5 mm):
Section 1: 4 inserts with Ø 13 mm
Section 2: Sphere for 3D-MTF, Al, Ø 12 mm
Section 3: Blank, water equivalent for noise, uniformity
Section 4: Hole grid Ø 0.3 to 1.0 mm in-plane and coronal, spatial resolution
Section 5: artificial dental arch, 7 bone inserts (100 mg CaHA/cm³) with Ø 3 mm
2 metal inserts (Titanium) with Ø 3 mm
3 soft tissue inserts (-8 % / 0 % / +8 %) with Ø 9 mm
Metal artifact behaviour in bone and soft tissue
Extension ring: Ø 160 mm, height 100 mm

Related Downloads

Spec
Dental CBCT Phantom (BASIC) ( 2 MB )
Spec
Dental CBCT QA Phantom (EXPERT) ( 2 MB )
Catalog
QRM Phantoms for X-ray Imaging ( 5 MB )
