3D, 2D Low Contrast Phantoms

For measuring the low-contrast resolution in CT and Cone-Beam CT

  • 3D Low Contrast Phantom
    • D100 compatible

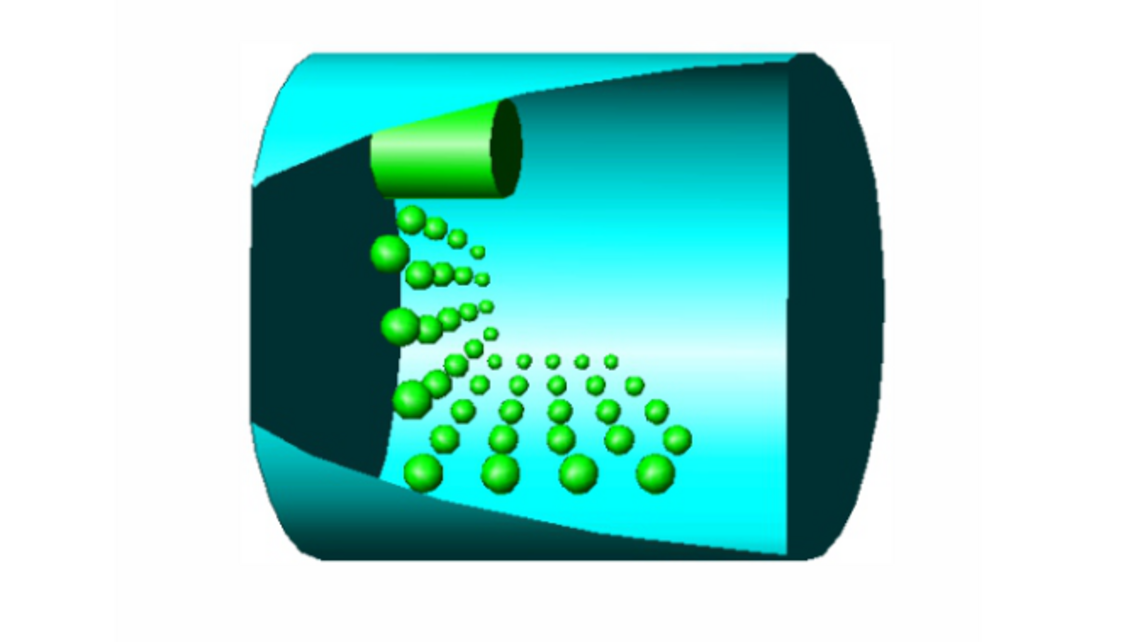

    • Includes several spherical low contrast inserts arranged in two planes
    • 2 different contrast levels relative to the background
      • QRM-10109: 3D Low Contrast Phantom (-10 HU)
      • QRM-10110: 3D Low Contrast Phantom (-20 HU)
  • QRM-10100: 2D Medium-Contrast Phantom
    • D100 compatible
    • Includes several cylindrical medium-contrast test objects of different sizes (2-15 mm)
    • 4 contrast steps in the phantom: -25, -50, -75 and -100 HU

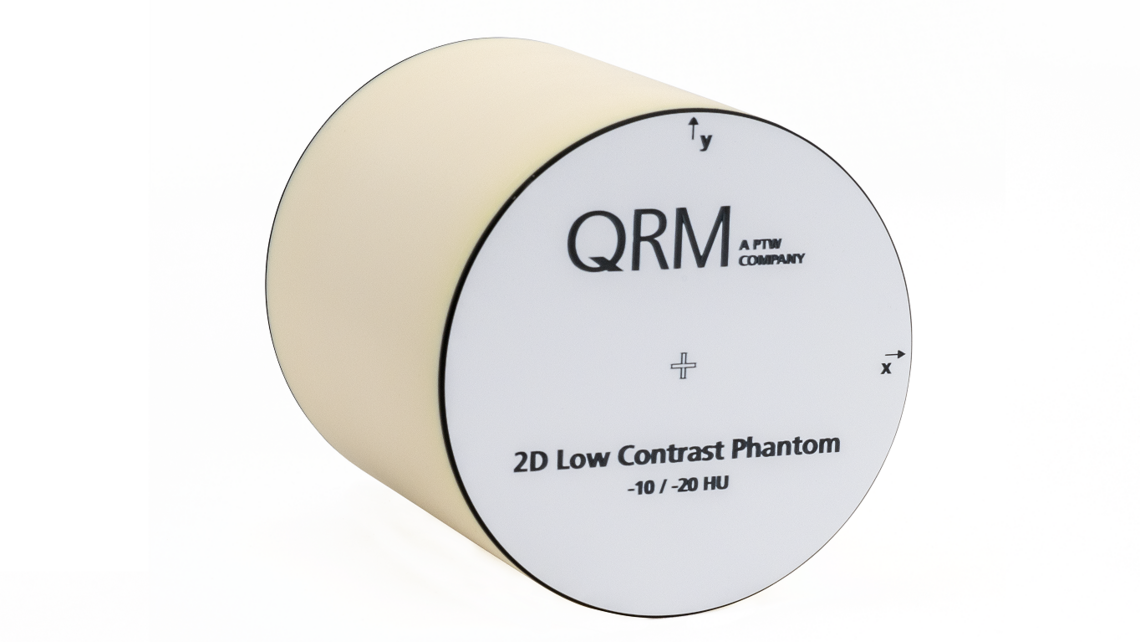

  • QRM-10112: 2D Low-Contrast Phantom
    • D100 compatible
    • Includes several cylindrical low-contrast test objects of different sizes (5 - 15 mm)
    • Contrast to background -20 HU and -10 HU in one phantom

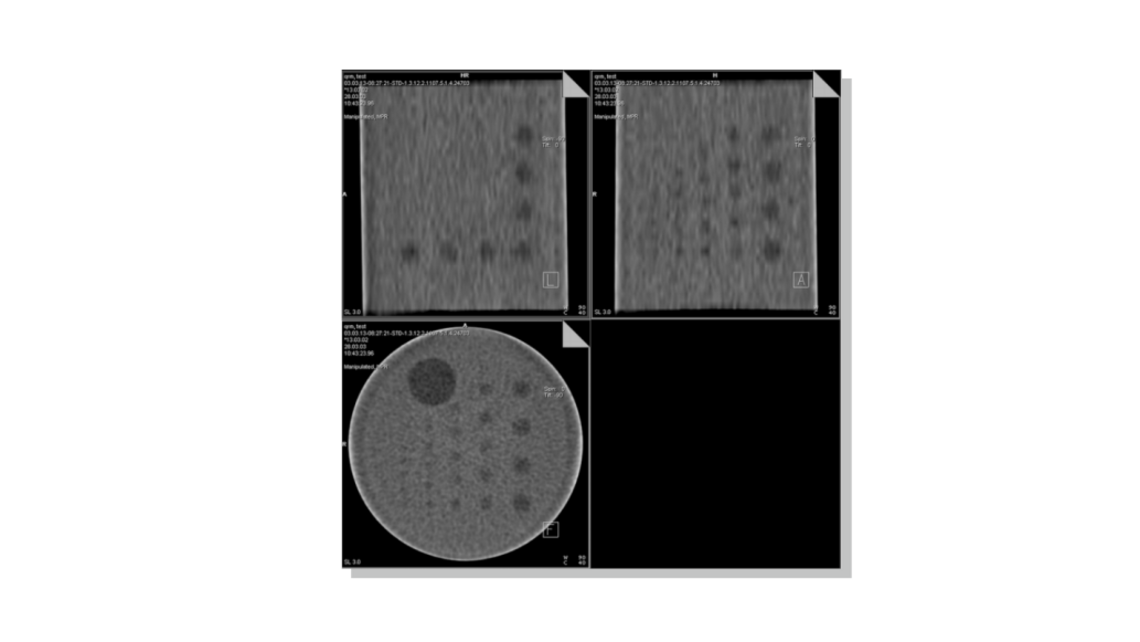

The phantoms are ideally suited for the evaluation of the imaging capabilities of 3D X-ray imaging modalities (e.g. CT or Cone-Beam CT). The contrast resolution is obtained by a single spiral scan using axial images (QRM-10109, QRM-10110, QRM-10100, QRM-10112) and coronal reformations (QRM-10109, QRM-10110). The phantoms visualize the impact of all, scan, image reconstruction, and display parameters.

The low or medium-contrast inserts (spheres/rods with varying diameters) are located within the cylindrical body of homogeneous tissue-equivalent material.

The phantoms fit into the Thorax, Abdomen and Oval Body Phantom.

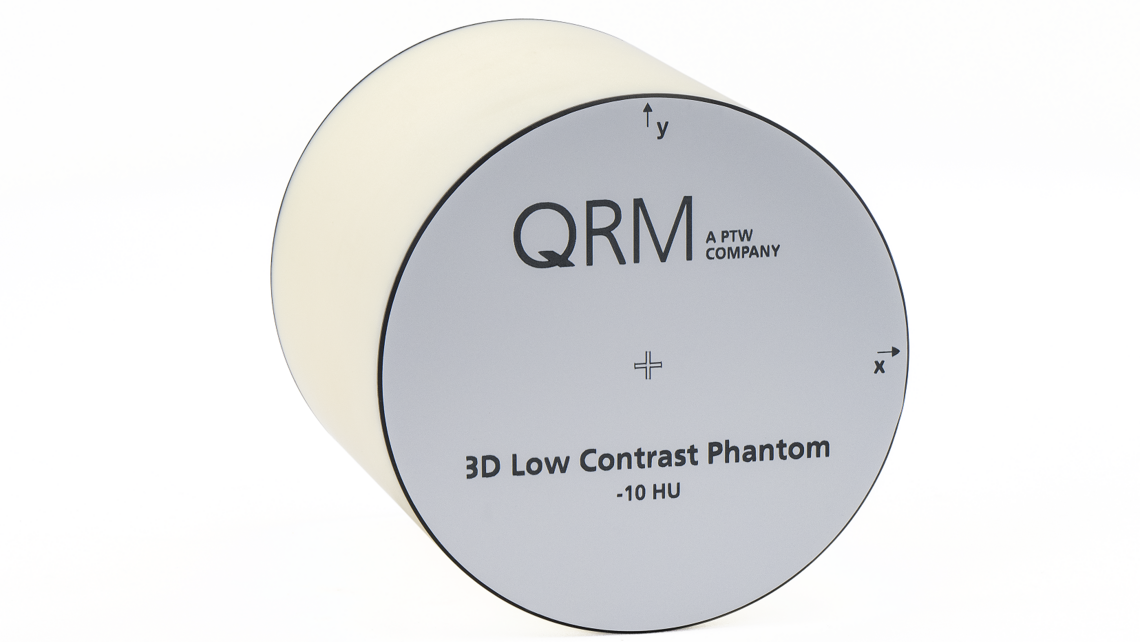

3D Low Contrast Phantom (-10 HU), QRM-10109

3D Low Contrast Phantom (-20 HU), QRM-10110

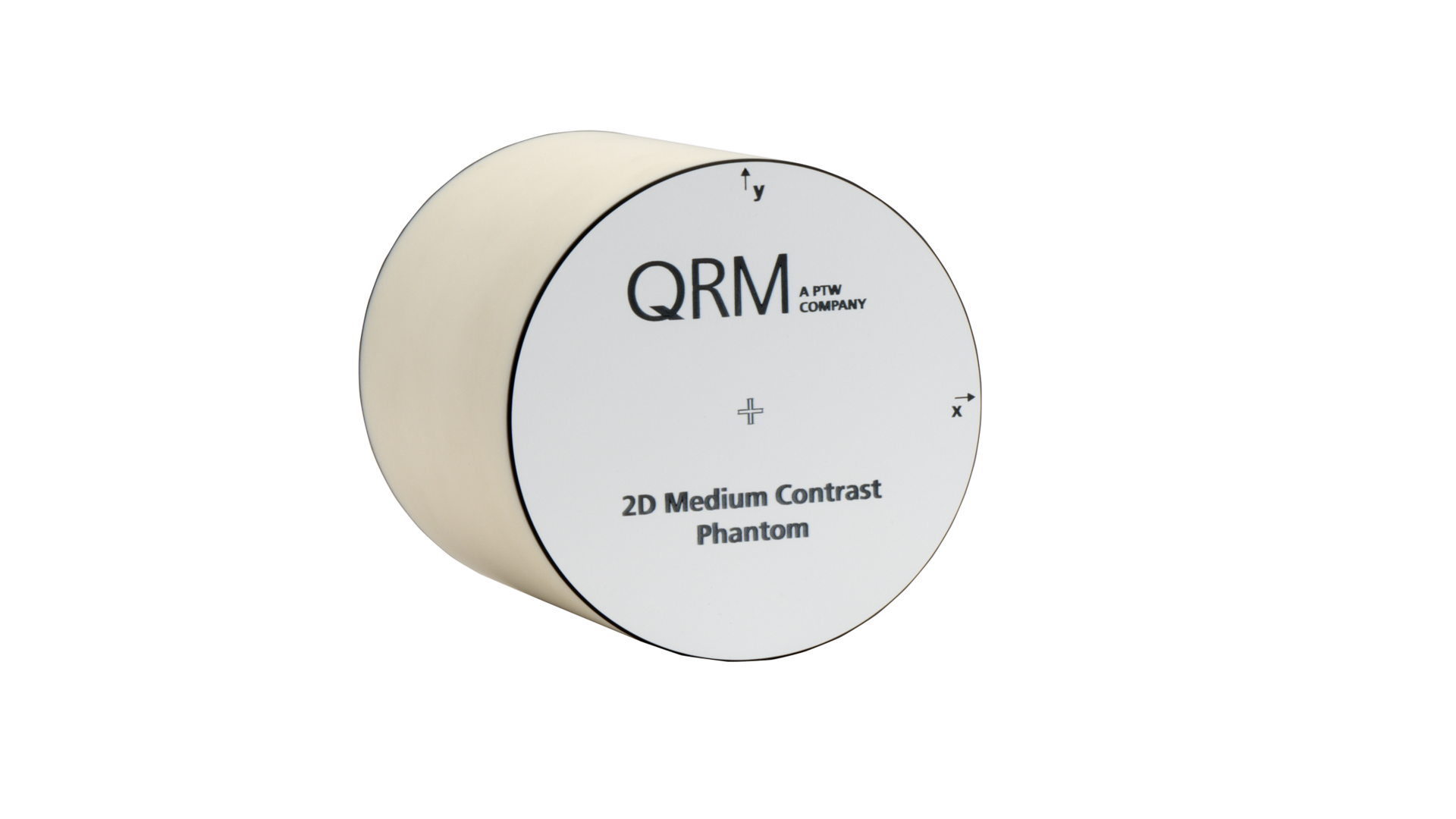

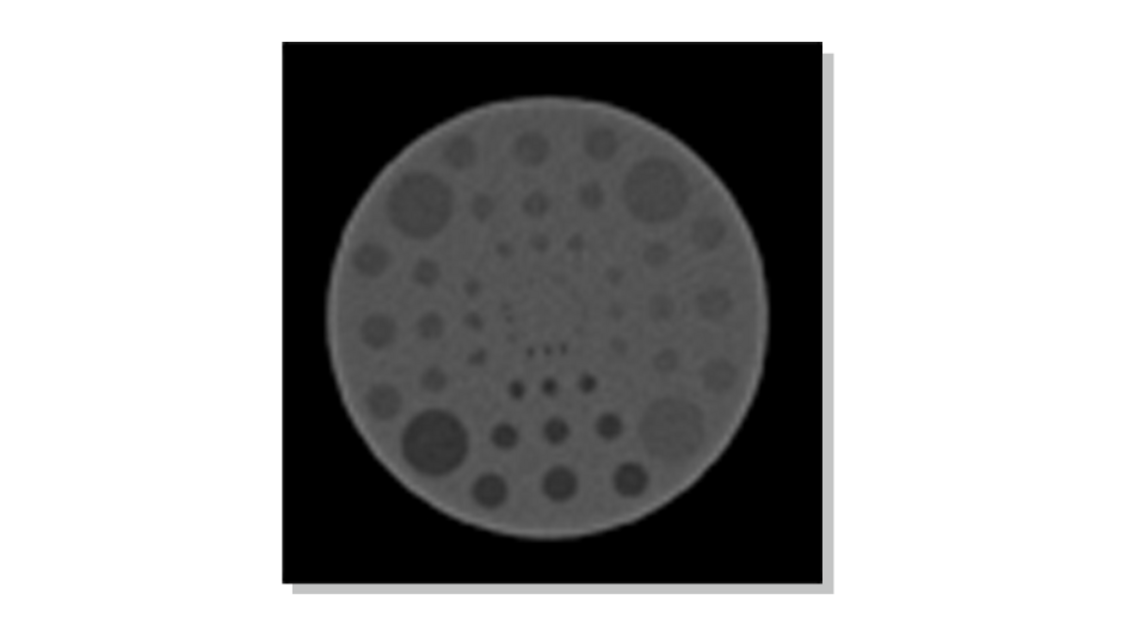

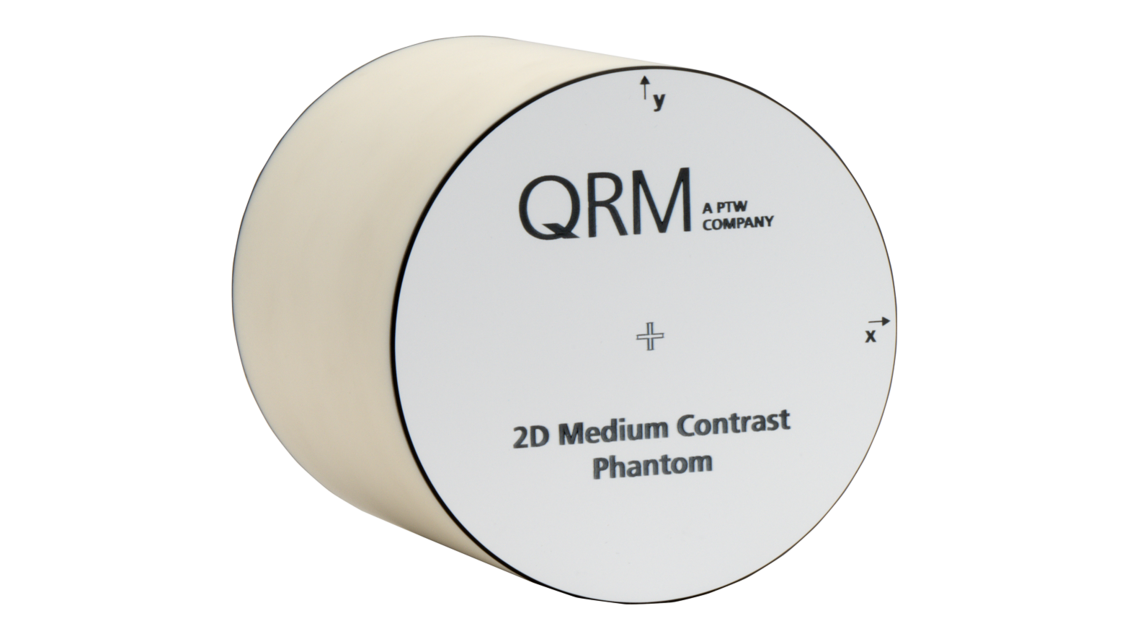

2D Medium Contrast Phantom, QRM-10100

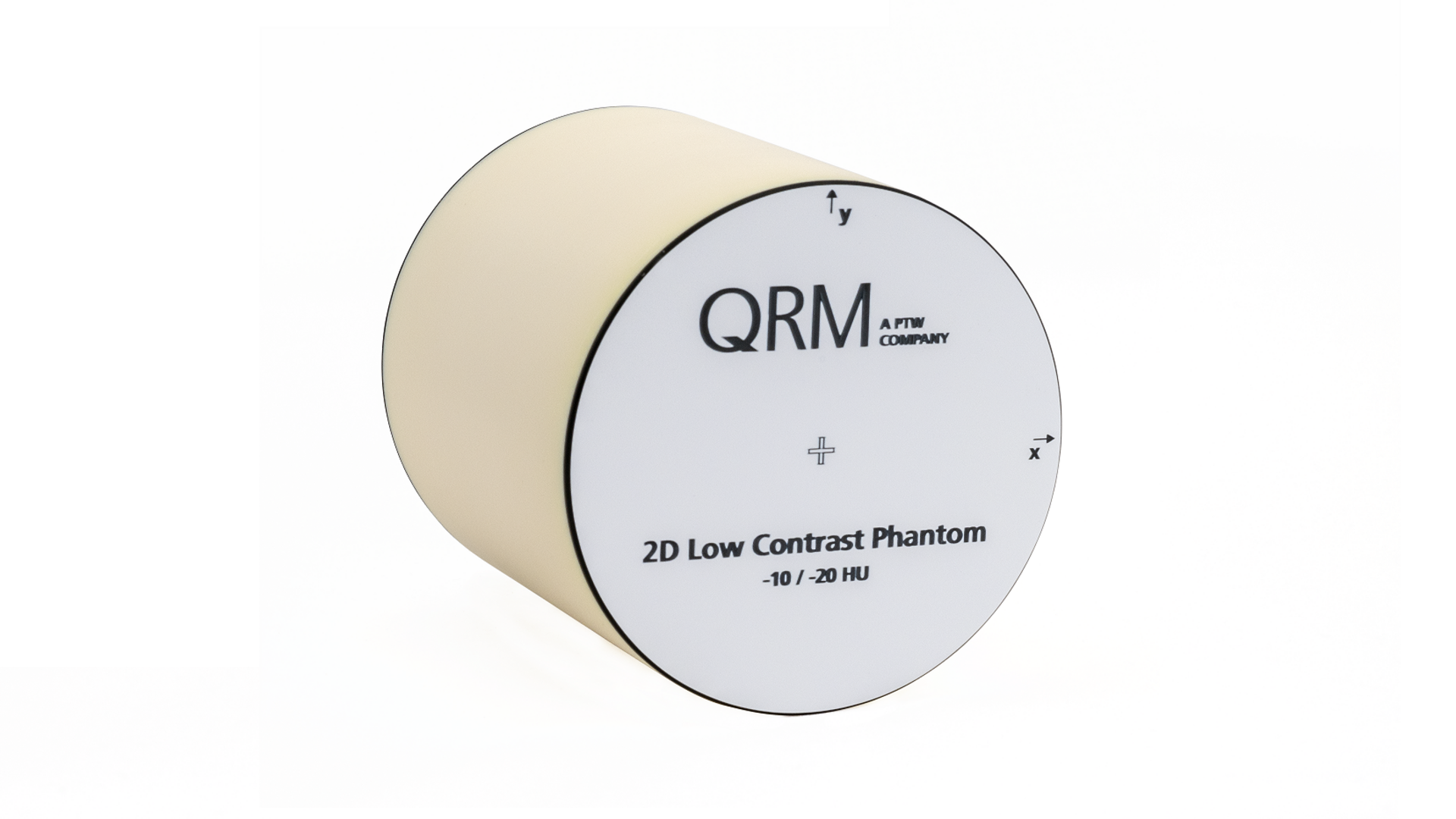

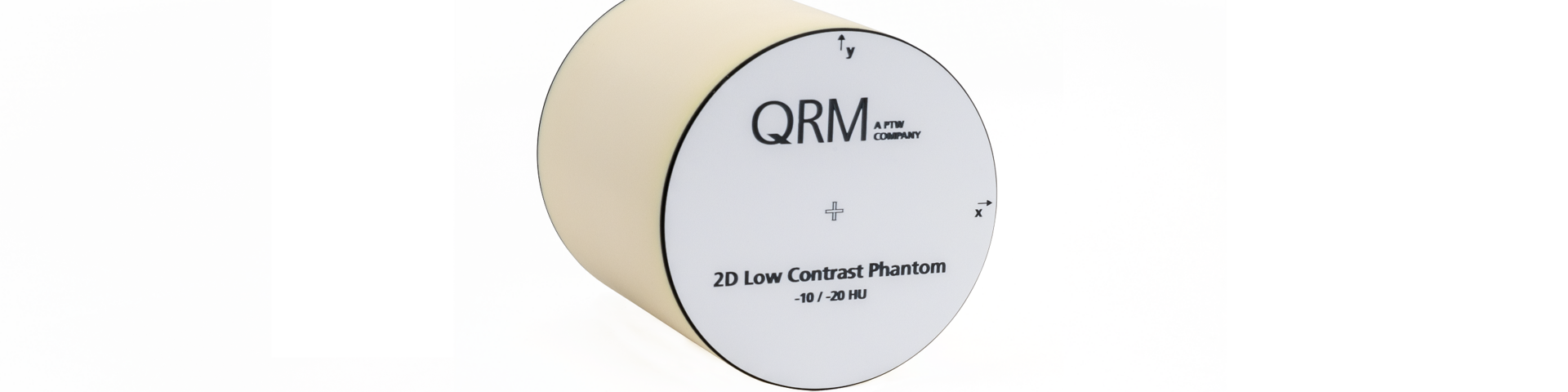

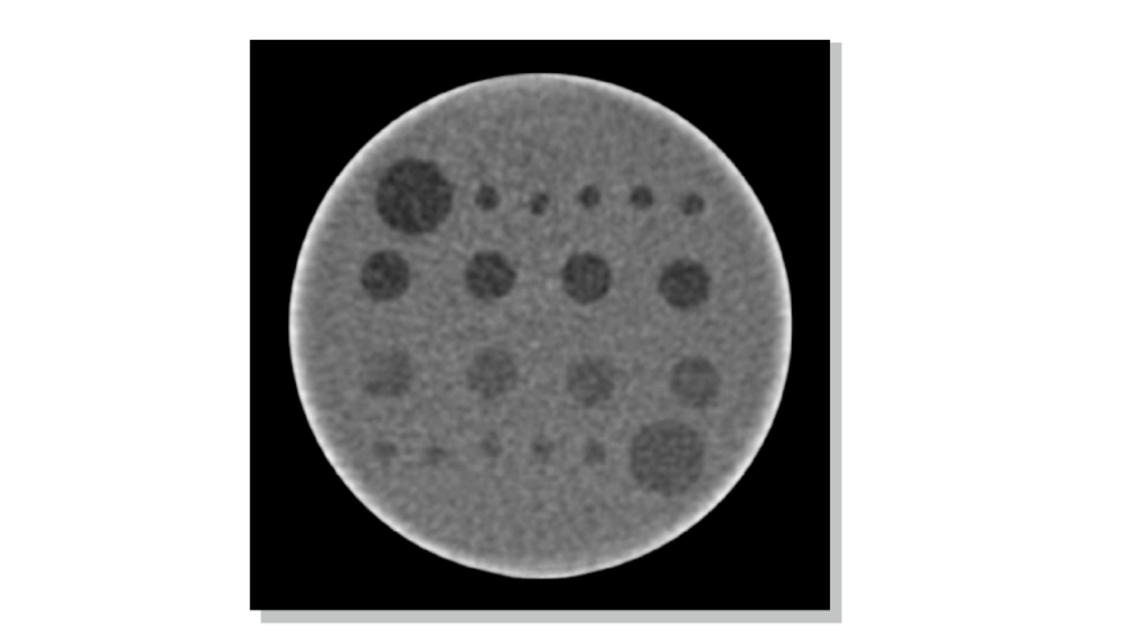

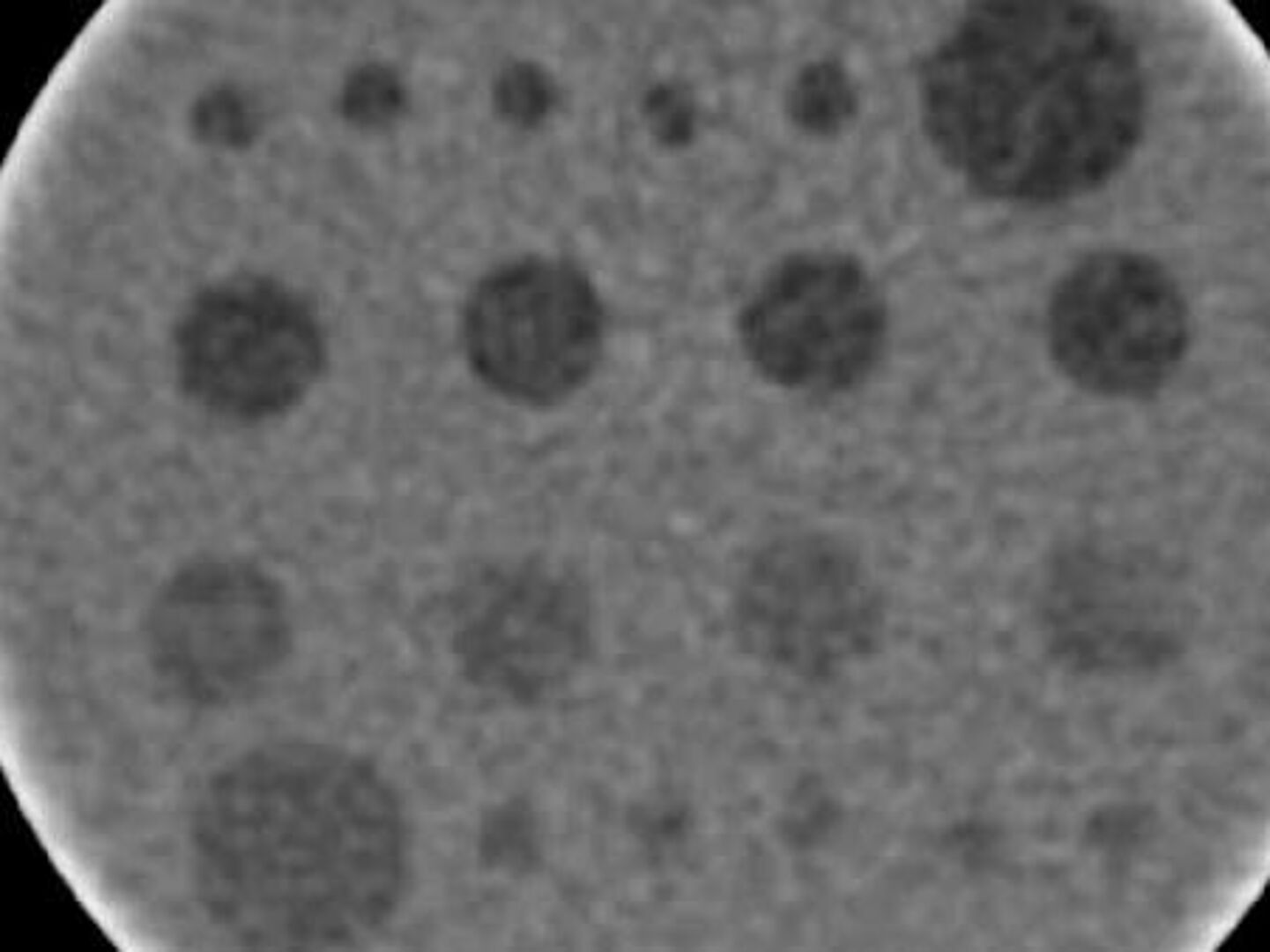

2D Low Contrast Phantom, QRM-10112

Technical Specifications

Phantom diameter 100 mm
Phantom height 103 mm
Phantom weight: 0.9 kg
Body material: tissue-equivalent plastic
Contrast inserts: -10 HU (QRM-10109) or -20 HU (QRM-10110) relative to background*
Cylindrical contrast insert:
  Diameter: Ø 20 mm
  Height: 25 mm
Spherical contrast inserts: 9 spheres Ø 3 mm
  9 spheres Ø 4 mm
  9 spheres Ø 5 mm
  9 spheres Ø 6 mm
  7 spheres Ø 8 mm

*Accuracy: ±3% of specified values

Phantom diameter: 100 mm
Phantom height: 103 mm
Phantom weight: 0.9 kg
Body material: tissue-equivalent plastic at 120 kV
Contrast inserts:
  Contrast values: -10 HU and -20 HU relative to background*
  Dimensions: Ø 5, 10, 15 mm / H 100 mm

*Accuracy: ±1% of specified values

Phantom diameter: 100 mm
Phantom height: 103 mm
Phantom weight: 0.9 kg
Body material: tissue-equivalent plastic at 120 kV
Cylindrical inserts:
  Contrast values: -25, -50, -75 and -100 HU relative to background*
  Dimensions: Ø 2, 4, 6, 8 and 15 mm / H 100 mm

*Accuracy ± 3 HU of specified values.

Image Gallery

Related Downloads

Spec
3D Low-Contrast Resolution Phantom ( 2 MB )
Spec
2D Low-Contrast Resolution Phantom ( 2 MB )
Spec
2D Medium Contrast Phantom ( 1 MB )
Catalog
QRM Phantoms for X-ray Imaging ( 5 MB )
