Spectral CT Phantom

For testing different types of CT modalities with dual-energy, multi-energy or photon-counting setups

D100 compatible
Test the accuracy and consistency of spectral CT
Test the Scanner performance
Perform a material characterization and quantification of tissue-equivalent materials
Decompose Iodine and CaHA levels
Test the post-processing techniques of spectral CT

The Spectral CT Phantom can be used to test different types of CT modalities with dual-energy, multi-energy or photon-counting setups.

The 100 mm cylinder contains 4 holes (QRM-10139) or 8 holes (QRM-10147) with 20 mm diameter to house different solid rods and fillable tubes that can be used with water or contrast media.

The set of solid rods includes different concentrations of Iodine and Ca-Hydroxyapatite (CaHA) as well as water- and soft tissue-equivalents (adipose, muscle, bone, and lung according to ICRU Report 44 and 46). Mass density, electron density and effective atomic number are provided for all materials.

Spectral CT Phantom, QRM-10139

Spectral CT Phantom II, QRM-10147

Additional rods:
- QRM-10145: fillable rod (Ø 20 mm)
- QRM-30101: ICRU tissue rod, soft tissues (further information can be found in the QRM-ICRU-Tissues)
- QRM-30102: ICRU tissue rod, bone (further information can be found in the QRM-ICRU-Tissues)
QRM-10143: D100 CTwater insert, 8 boreholes
QRM-20100: Thorax Phantom
QRM-20118: Abdomen Phantom
QRM-20115: Oval Body Phantom, Tissue
QRM-20116: Oval Body Phantom, CTwater

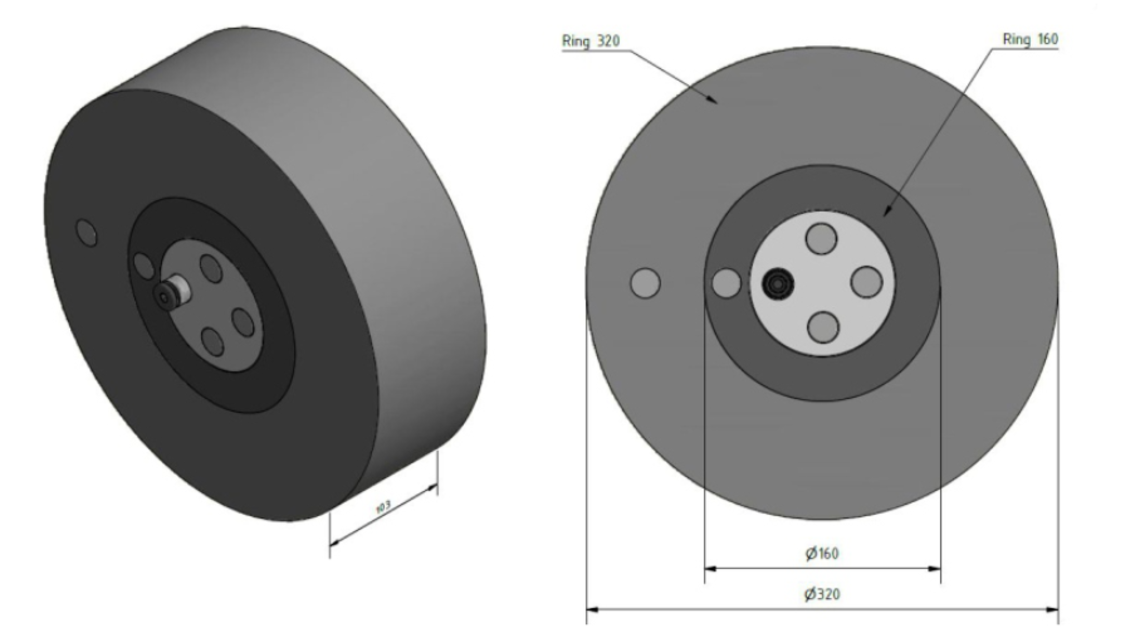

QRM-10141: Extension Ring CTwater, 160mm
QRM-10142: Extension Ring CTwater, 320mm

View in Catalog

Phantom diameter:	100 mm
Phantom height:	103 mm
Phantom weight:	1.0 kg
Body material:	Body material: Water-equivalent (CTwater, app. 0 HU at 80 - 140 kV *)
Holes (Ø 20 mm):	4 pcs.
Insert diameter:	20 mm
Insert height:	103 mm

4 plugs CTwater	0 HU at 80 - 140 kV*
12 test rods:
	1x ICRU Adipose tissue
	1x ICRU Muscle tissue
	1x ICRU Lung tissue
	1x ICRU Liver tissue
	4 different solid Iodine rods (CTIodine)**	2, 5, 10 and 15 mg I/cm³
	4 different CaHA rods (bone)**	100, 200, 400 and 800 mg CaHA/cm³
2 fillable rods/tubes

*Accuracy ± 5 HU of specified values.

**Specified values. Nominal values can vary with respect to manufacturing method and imaging device!

Phantom diameter:	100 mm
Phantom height:	103 mm
Phantom weight:	1.0 kg
Body material:	Body material: Water-equivalent (CTwater, app. 0 HU at 80 - 140 kV *)
Holes (Ø 20 mm):	8 pcs.
Insert diameter:	20 mm
Insert height:	103 mm

8 plugs CTwater	0 HU at 80 - 140 kV*
12 test rods:
	1x ICRU Adipose tissue
	1x ICRU Muscle tissue
	1x ICRU Lung tissue
	1x ICRU Liver tissue
	4 different solid Iodine rods (CTIodine)**	2, 5, 10 and 15 mg I/cm³
	4 different CaHA rods (bone)**	100, 200, 400 and 800 mg CaHA/cm³
2 fillable rods/tubes

*Accuracy ± 5 HU of specified values.
**Specified values. Nominal values can vary with respect to manufacturing method and imaging device!

Related Products

CTwater

Water equivalent material for CT imaging purposes

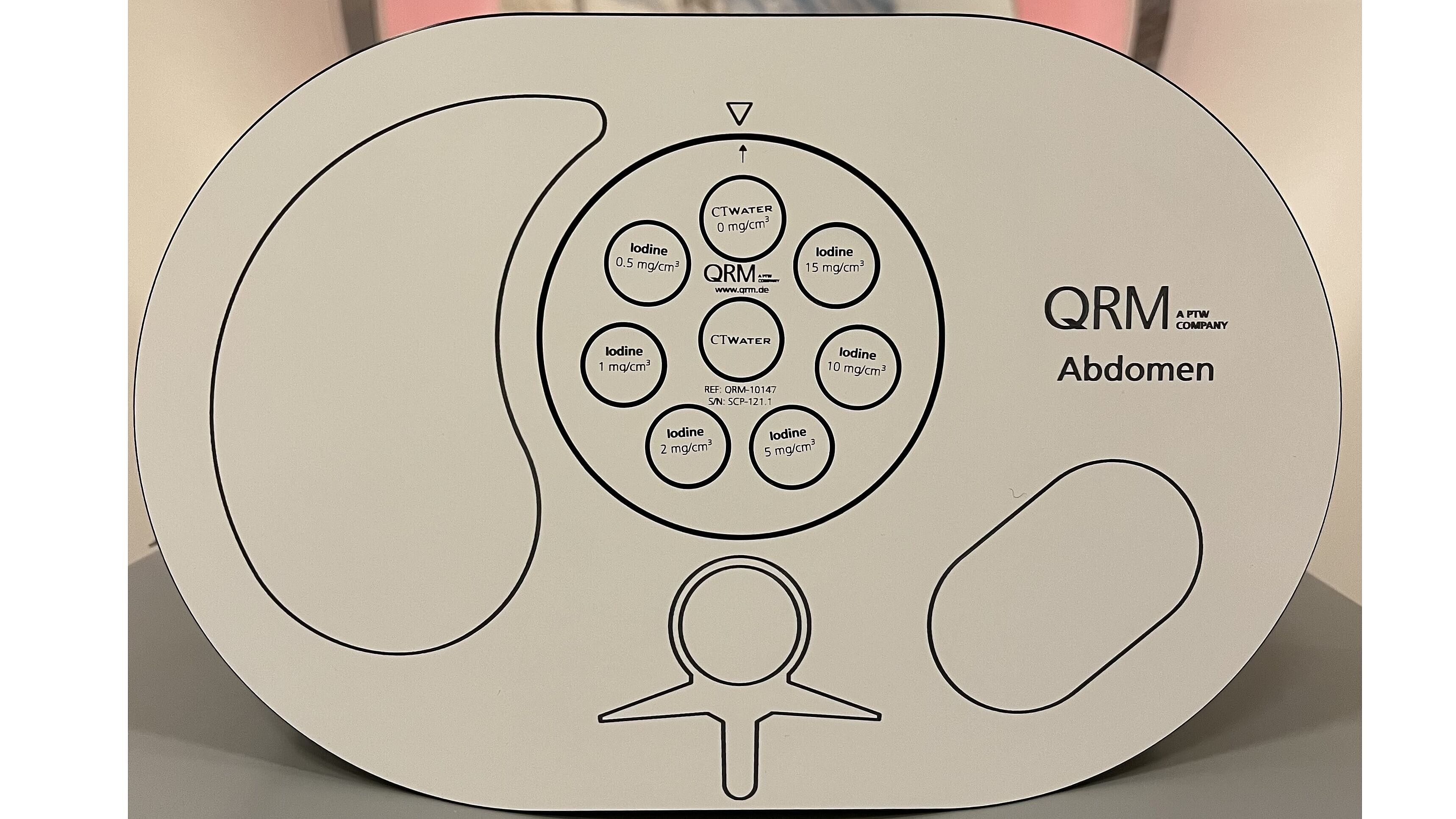

Abdomen Phantom
