Abdomen Phantom

For mimicking human tissues with respect to density and X-ray attenuation characteristics of a human abdomen

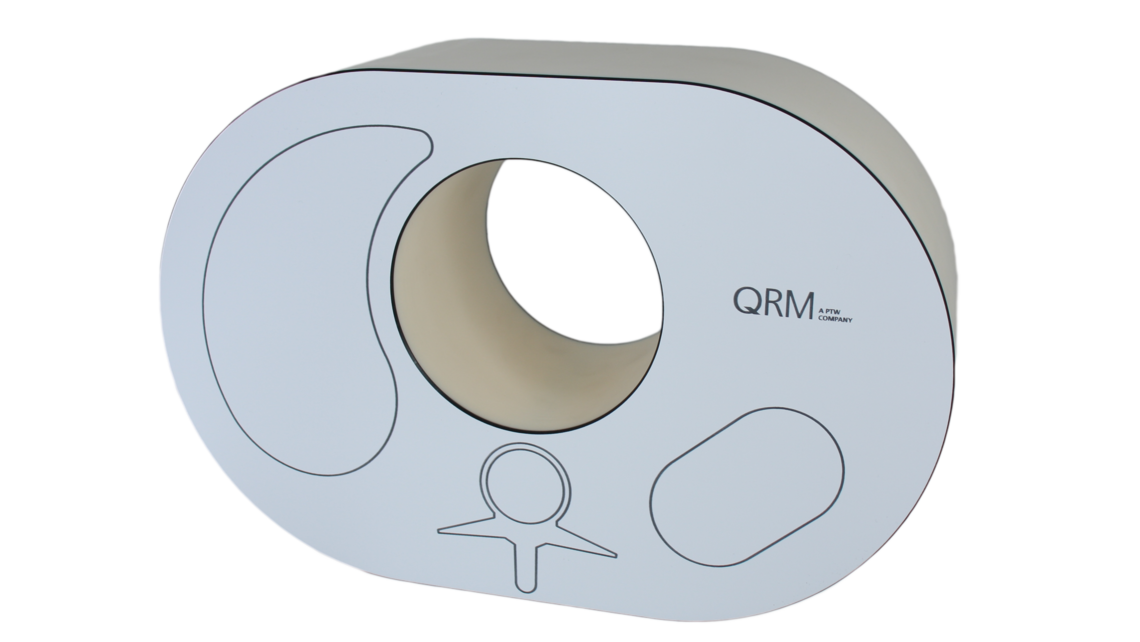

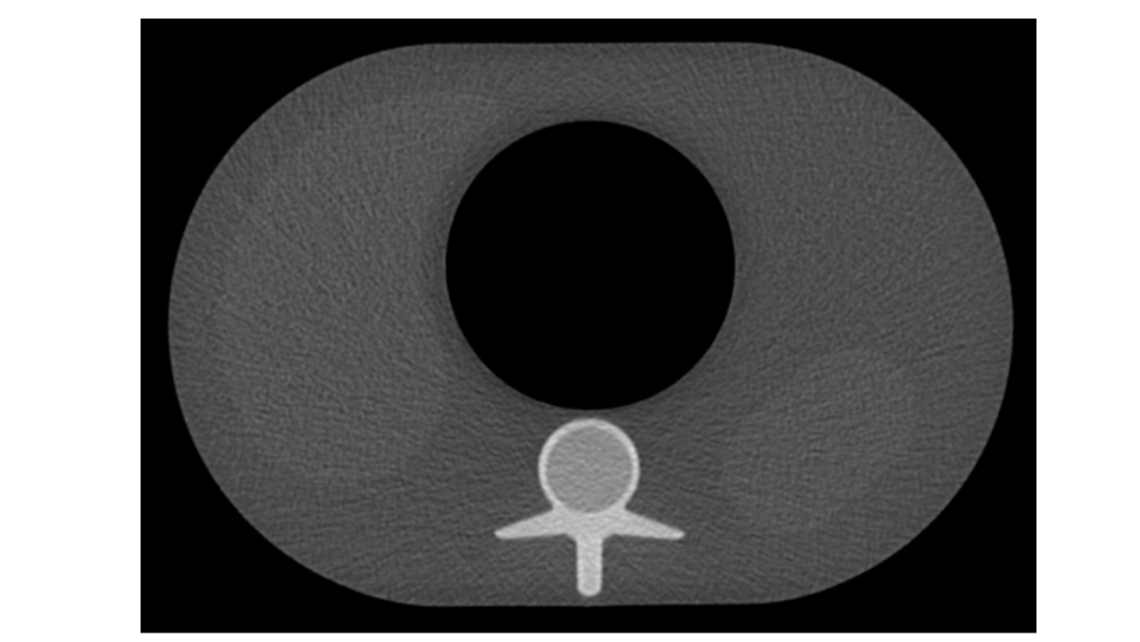

The phantom serves as (semi-)anthropomorphic surrounding for our multiple D100 imaging inserts. It comprises a bone-like spine insert (spongiosa and corticalis) and fixed liver and spleen inserts providing the appropriate CT values of real tissues. All organs are embedded in soft tissue-equivalent material. The plastics of this phantom mimic human tissues with respect to density and X-ray attenuation characteristics of a human abdomen.

There are multiple standard cylinders (D100) for image quality purposes available (see options section).

Customizable: The phantom can be manufactured with exchangeable/removable liver and spleen inserts.



Abdomen Phantom, QRM-20118



The Abdomen Phantom is also available with drilled holes according to CTDI-specifications:

  • QRM-40105: Abdomen Dosimetry Phantom



There are multiple standard cylinders for image quality purposes available. The following D100 Insert are available:



Further, there are extension rings available to mimic obese patients:

  • QRM-20104: Extension Ring Soft Tissue, M
  • QRM-20105: Extension Ring Soft Tissue, L
  • QRM-20106: Extension Ring Soft Tissue, XL
  • QRM-20107: Extension Ring Fat, M
  • QRM-20108: Extension Ring Fat, L
  • QRM-20109: Extension Ring Fat, XL

View in Catalog

Phantom dimension: 200 mm x 300 mm
Phantom height: 103 mm
Phantom weight: 3.2 kg
Diameter of borehole: 100 mm
Body material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Liver/Spleen: tissue-equivalent (app. 60 HU at 120 kV)
Spine: corticalis / spongiosa (bone-like, app. 550 HU / 200 HU at 120 kV)
