MAM Phantoms

For acceptance and constancy tests for prone mammography stereotactic biopsy systems

For acceptance and constancy tests for prone mammography stereotactic biopsy systems
Designed in accordance with DIN 6868-163

The MAM technician (QRM-10148) and operator sets (QRM-10149) for NORMI® MAM digital are designed for acceptance and constancy tests for prone mammography stereotactic biopsy systems.

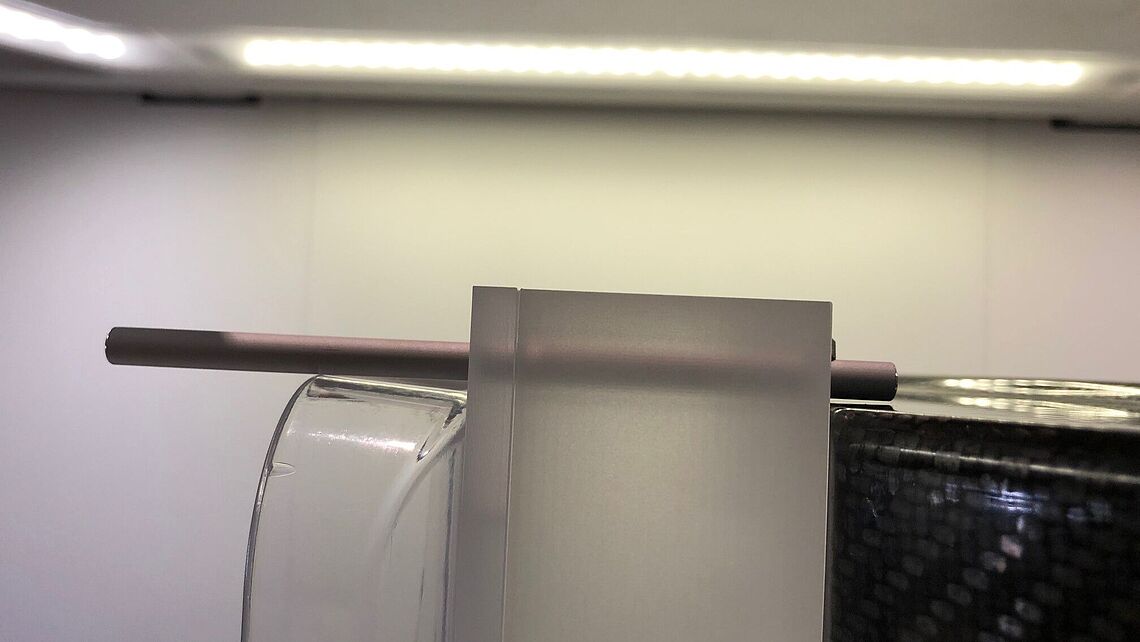

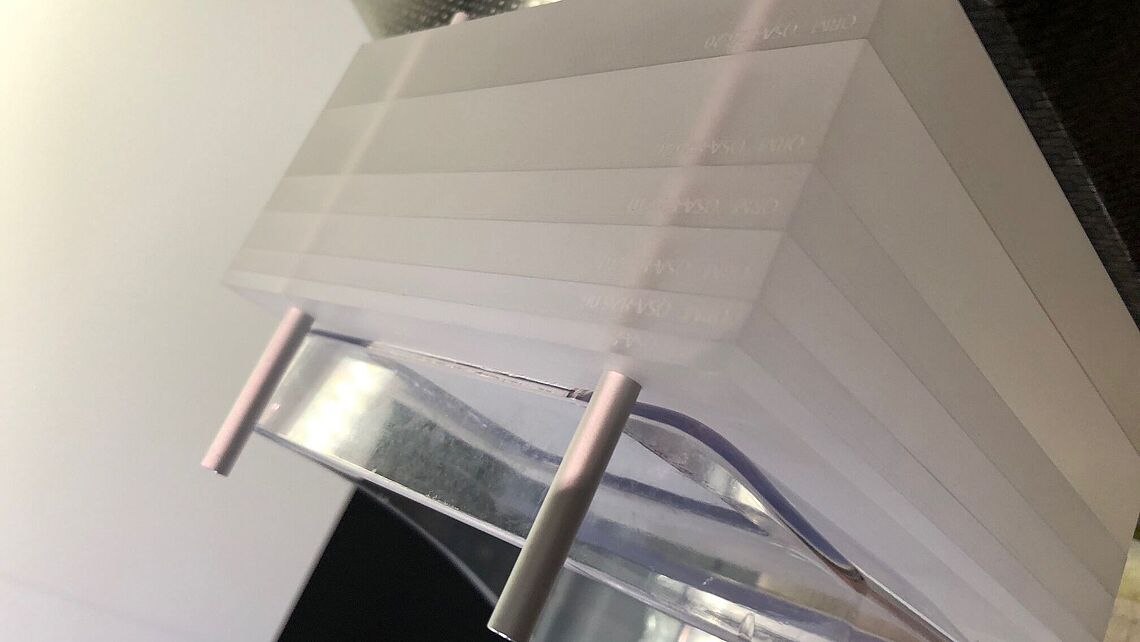

Both sets offer the possibility to perform acceptance and constancy tests, according to DIN 6868-163. The phantoms are made of PMMA and can be positioned between the X-ray tube and detector of the mammography unit using two aluminium rods (included).

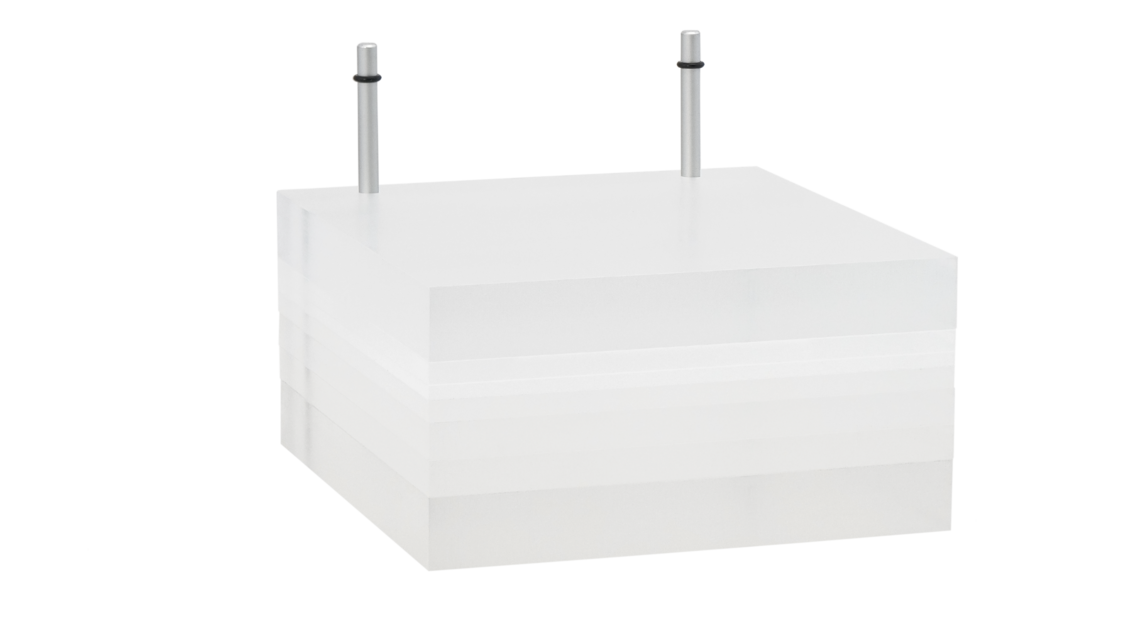

Technician set for MAM 6868-163, QRM-10148
Operator set for MAM 6868-163, QRM-10149

View in Catalog

Type	Dimensions [mm]	Quantity
Test plate	150 x 150 x 6	1 pcs.
Absorber plate	150 x 150 x 20	2 pcs.
Absorber plate	150 x 150 x 10	2 pcs.
Absorber plate	150 x 150 x 6	1 pcs.
Absorber plate	150 x 150 x 4	1 pcs.

All plates have two bore holes, such that they can be attached to the aluminum holder (two rods, diameter: 6 mm, length: 120 mm).

Type	Dimensions [mm]	Quantity
Test plate	150 x 150 x 6	1 pcs.
Absorber plate	150 x 150 x 40	1 pcs.

All plates have two bore holes, such that they can be attached to the aluminum holder (two rods, diameter: 6 mm, length: 120 mm).
