Micro-CT HA Phantom

For the calibration of micro-CT bone mineral density

  • Worldwide standard for measuring Bone Mineral Density (BMD) in small animal micro-CT
  • Calibrate CT numbers vs. HA values
  • Provides acurate bone mineral density of CaHA for in-vivo or in-vitro micro-CT bone calibration
  • Customizable

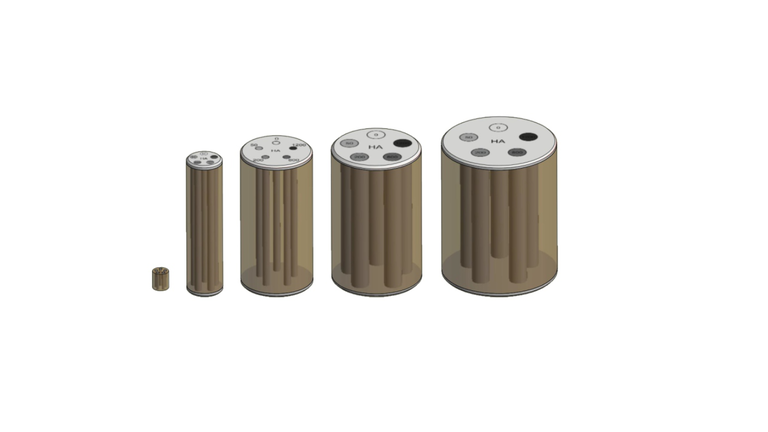

Each Micro-CT HA Phantom houses five cylindrical inserts containing various densities of CaHA (calcium hydroxyapatite). 5 different phantom diameters are available (D32, D25, D20, D10, D4.5). The phantoms are the ideal tool for bone density calibration purposes and high-contrast resolution measurements.

Different sizes and inserts other than those specified here can be produced upon request.

Micro-CT HA Phantom, D32, QRM-70107
Micro-CT HA Phantom, D25, QRM-70129
Micro-CT HA Phantom, D20, QRM-70126
Micro-CT HA Phantom, D10, QRM-70127
Micro-CT HA Phantom, D4.5, QRM-70128

Micro-CT HA set of 5 single rods, QRM-70134



Technical Specifications

Micro-CT HA D32 (QRM-70107) Phantom diameter Ø 32 mm
  Insert diameter Ø 5 mm
  Phantom height app. 41 mm
  Phantom weight 35 g
Micro-CT HA D25 (QRM-70129) Phantom diameter Ø 25 mm
  Insert diameter Ø 5 mm
  Phantom height app. 41 mm
  Phantom weight 35 g
Micro-CT HA D20 (QRM-70126) Phantom diameter Ø 20 mm
  Insert diameter Ø 4 mm
  Phantom height app. 41 mm
  Phantom weight 35 g
Micro-CT HA D10 (QRM-70127) Phantom diameter Ø 10 mm
  Insert diameter Ø 2 mm
  Phantom height app. 41 mm
  Phantom weight 35 g
Micro-CT HA D4.5 (QRM-70128) Phantom diameter Ø 4.5 mm
  Insert diameter Ø 0.8 mm
  Phantom height 5 mm
  Phantom weight 35 g
Set of 5 single CaHA rods (QRM-70134) Insert diameter Ø 5 mm
  Phantom height 40 mm


Body material (all HA Phantoms) : resin

Specified HA (mg HA/cm³) Density ρ (g/cm³)
  1.13
50 1.16
200 1.26
800 1.65
1200 1.90

Image Gallery

Related Downloads

Spec
Micro-CT HA ( 2 MB )
Catalog
QRM Phantoms for X-ray Imaging ( 5 MB )

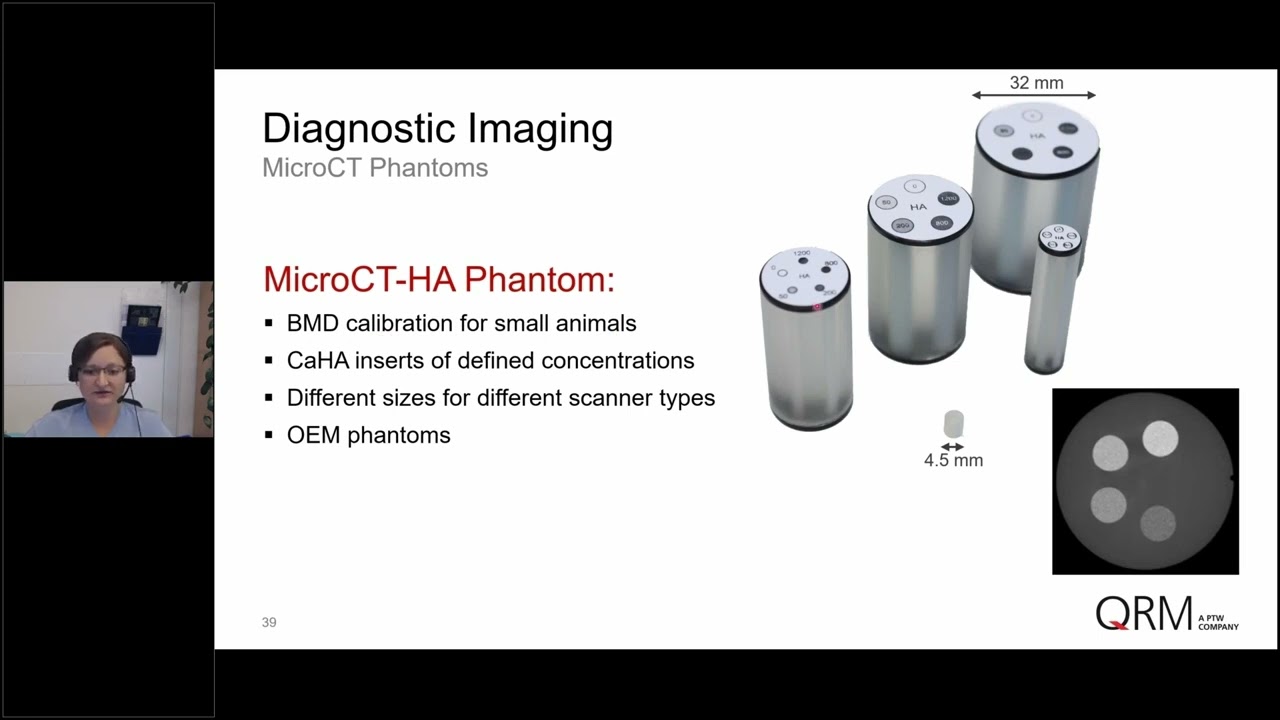

Related Videos
