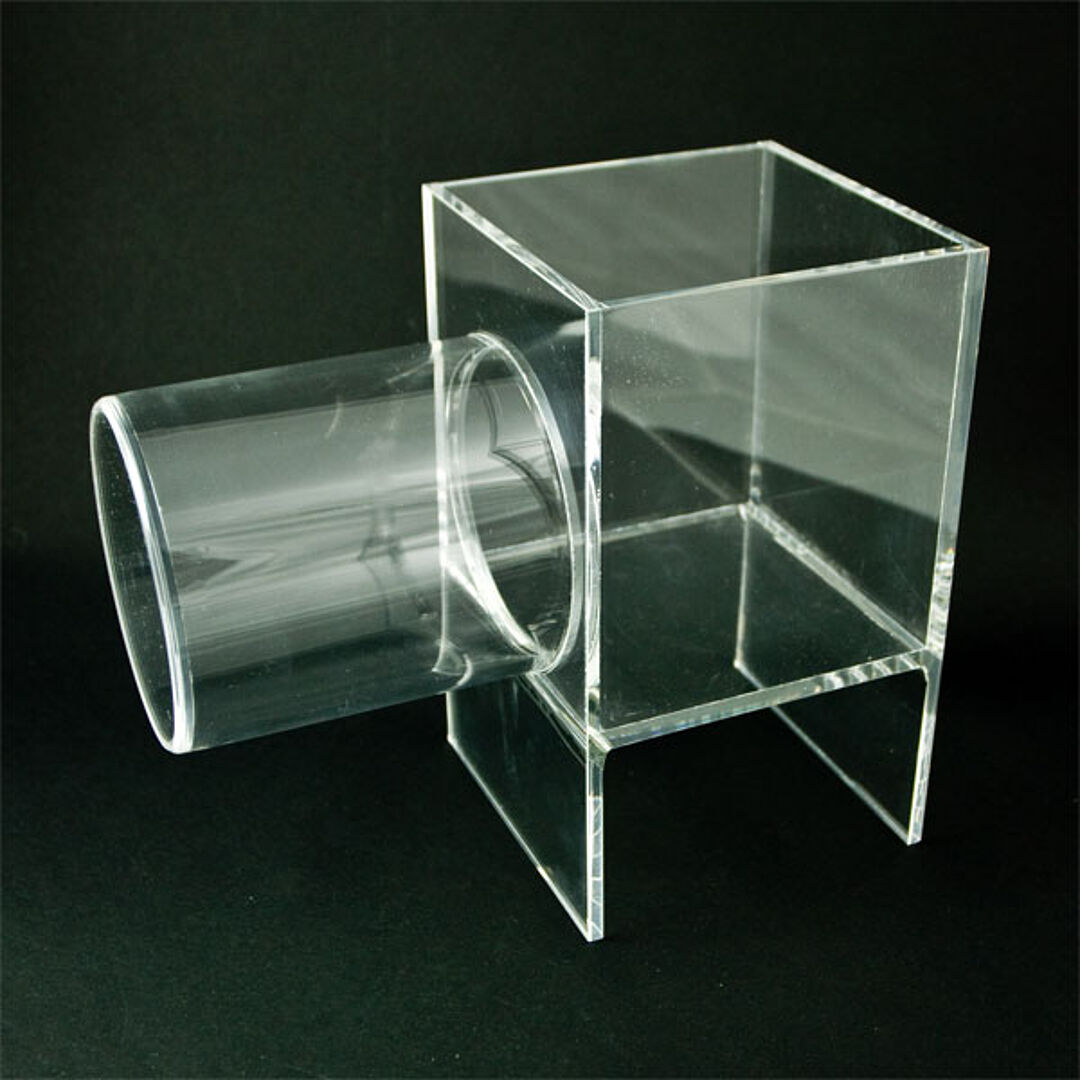

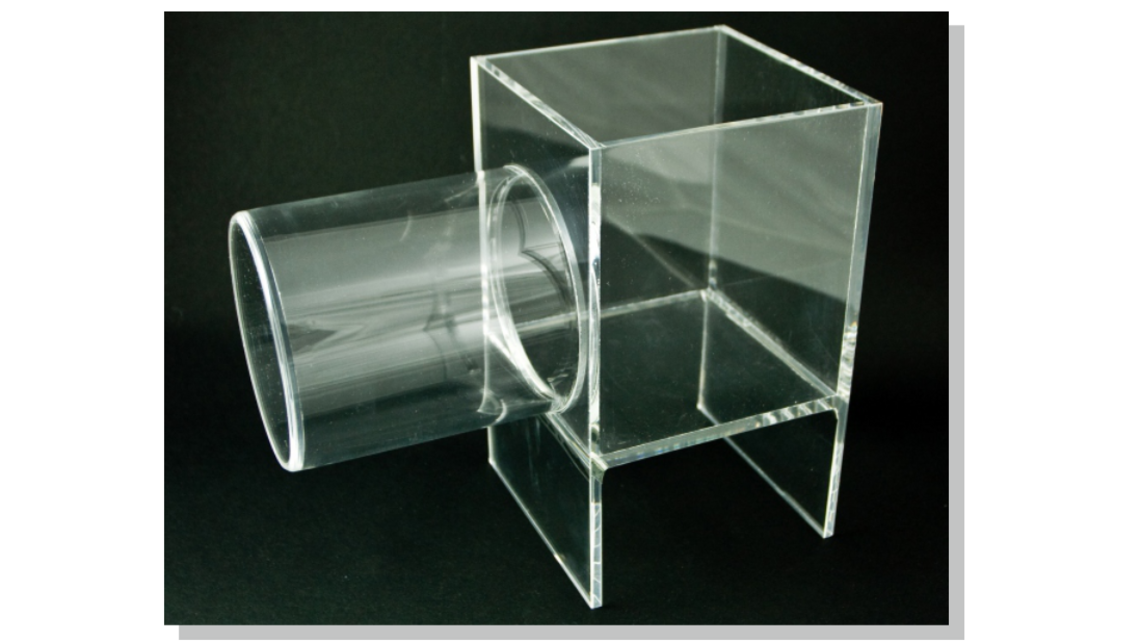

Water Tank Phantom

For the evaluation of noise and homogeneity in CT images

  • D100 compatible
  • Evaluate noise and homogeneity of a 3D scan
  • Samples and small phantoms can be placed in water

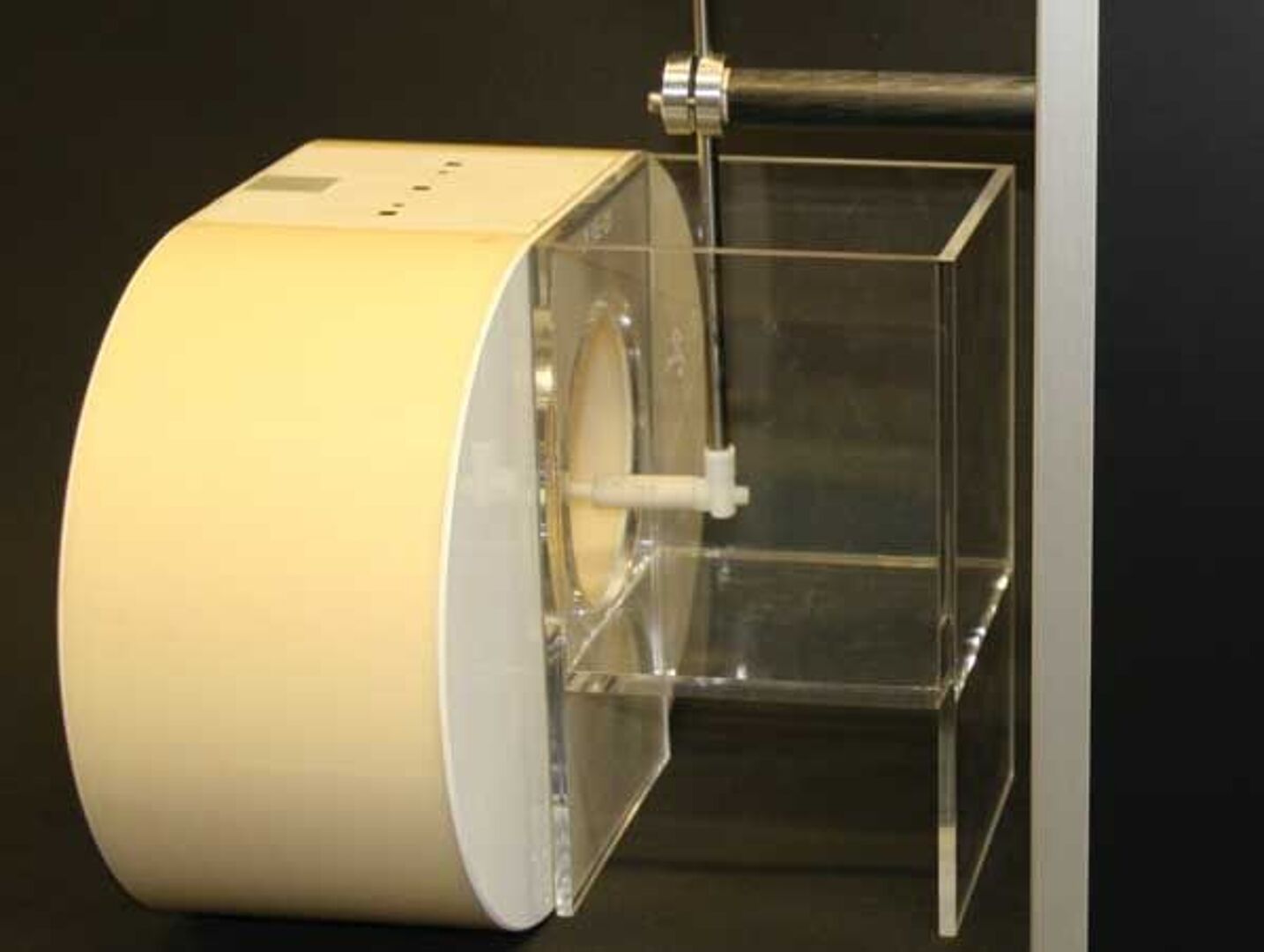

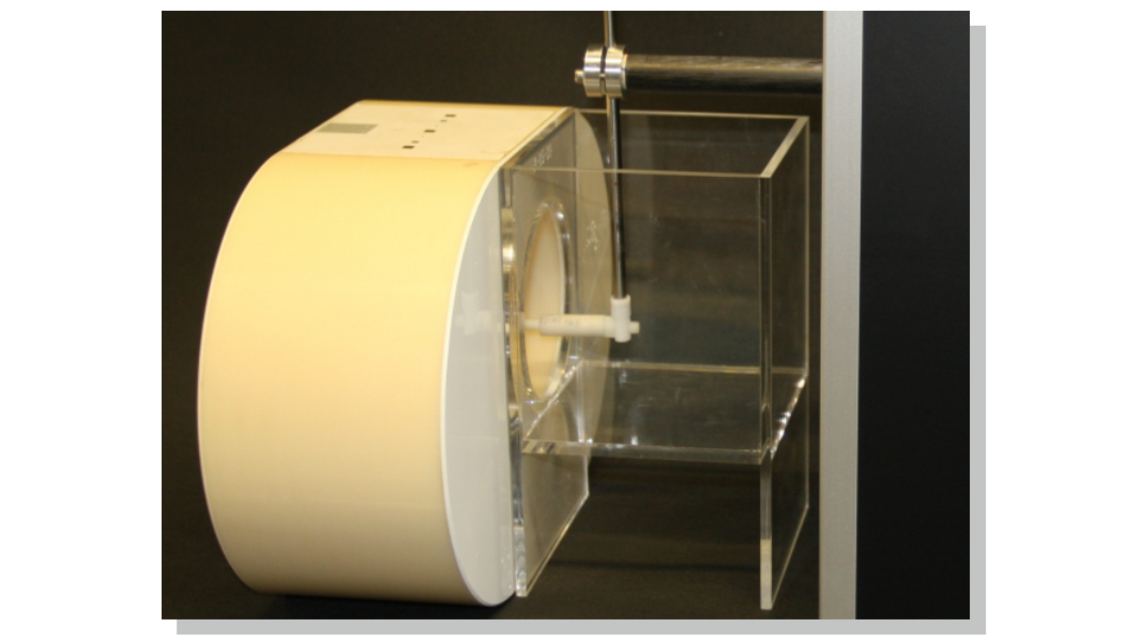

The Water Tank Phantom can be filled with water and allows to place smaller samples or phantoms in the cylindrical unit. The phantom can be used as a stand-alone phantom or can be attached to the Thorax (QRM-20100) or Abdomen (QRM-20118) Phantom.

A support for custom phantoms to be placed in water is available upon request.

Water Tank Phantom, QRM-10113

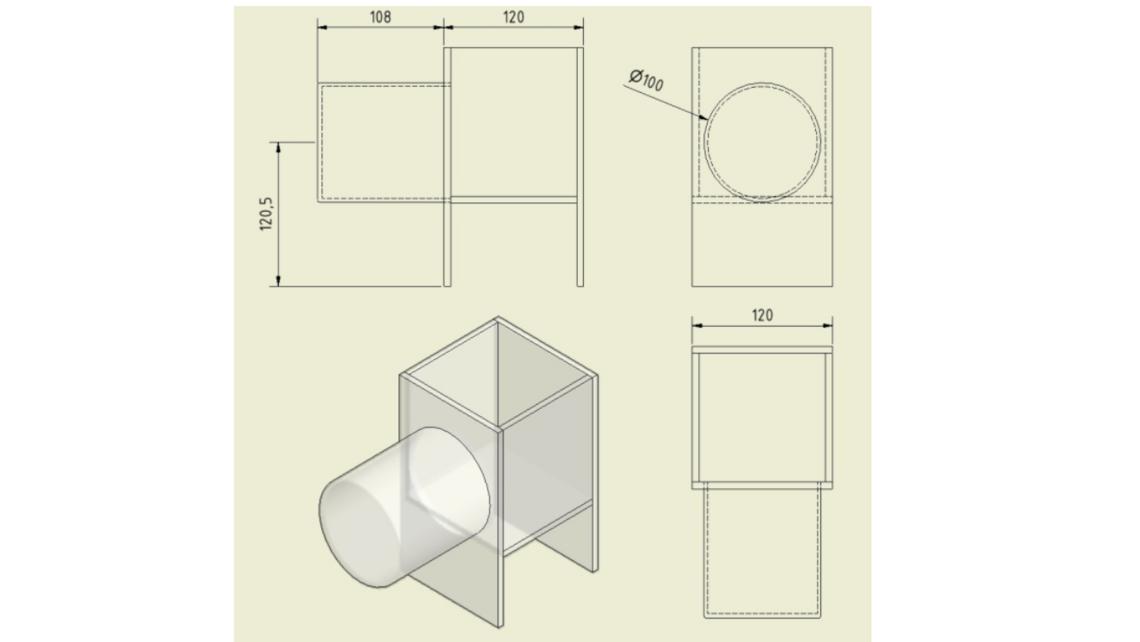

Phantom height: 200 mm
Phantom width: 120 mm
Phantom length: 228 mm
Phantom weight: 0.6 kg
Phantom material: PMMA
Cylinder diameter: 100 mm
Cylinder length: 108 mm
Cylinder wall thickness: 3.0 mm

Related Downloads

D100 Water Tank ( 2 MB )
QRM Phantoms for X-ray Imaging ( 5 MB )
